Discover a hassle-free solution in our Euroclamp lineup: a terminal block that seamlessly integrates with standard cable terminal blocks for effortless wire-to-wire connections.
PAVOL BUHLA SOS electronic Product Specialist More articles from the author

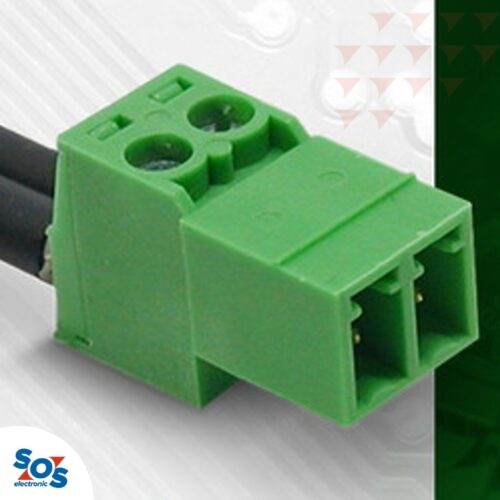

Wire-to-wire connection using SFxx-3,81-P and SHxx-3,81 terminal blocks
Terminal blocks are typically used when you need to connect multiple wires to a PCB. However, when you need to interconnect wires with other wires, it’s not as common.
Euroclamp offers an inverse terminal block as a standard part of its product range, but it is a PCB version. Therefore, they have introduced a new version of the terminal block specifically for cables. With this, you can easily and quickly create a wire-to-wire connection.

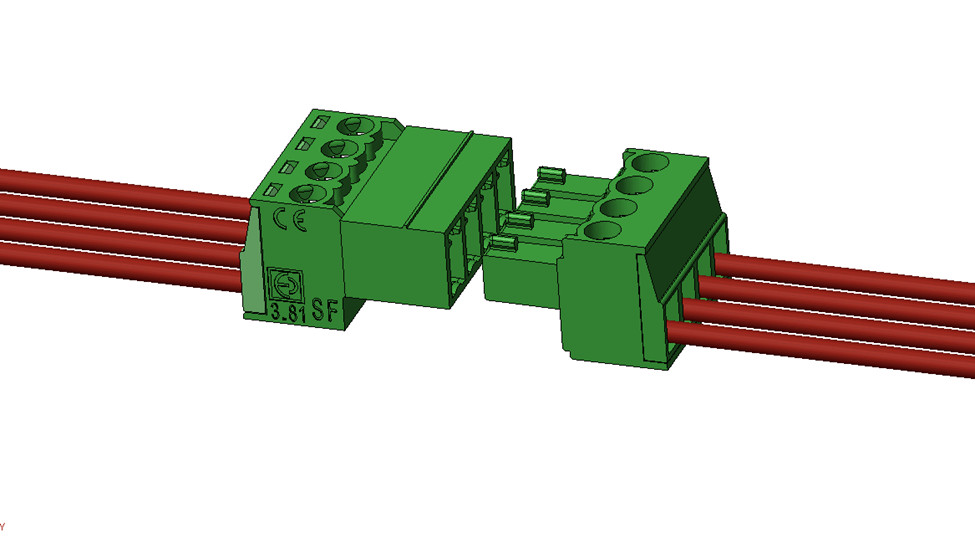

A standard pair consists of the plug-in connector SHxx-3,81 on the cable and the plug-in terminal block PVxx-3,81-P on the PCB. For testing, control, maintenance, or other purposes, it is possible to interconnect the SHxx-3.81 terminal block with another module or another device using the SFxx-3,81-P terminal block with wires.
“However, this terminal block is also suitable for more prosaic scenarios, and that is an ‘extension’ cable. Like all other Euroclamp terminal blocks, the manufacturer can produce it in various colors and, if needed, mark the positions. This can involve simple numbering, letters, or symbols according to your needs,” says Pavol Buhla, Manager of Product Specialists at SOS electronic.
For a larger number of plug-in terminal blocks on the cable in an application and to avoid confusion, we also recommend using coding spline POL-S.
Features and advantages of the SFxx-3.81-P series of terminal blocks from Euroclamp:
- Number of pins: 2 – 24
- Operating temperature range: –40 to 130 °C
- Maximum current: 11 A
- Maximum voltage: 200 V (II/3)
- Conductor cross-sections: 0,2 to 2,5 mm2
You can find a wide range of Euroclamp terminal blocks and connectors in SOS electronic stock offer, available for immediate availability for your projects. The rest can be arranged for you upon request.
Are you interested in more information about Euroclamp products or technical advice in choosing a product? Or do you have another question or request? Feel free to contact SOS electronic.
