Explore Attend’s round industrial connectors featuring high-quality all-plastic construction, gold-plated contacts, and IP67 protection for moist environments. With the ability for up to 1000 connections and disconnections, these connectors offer reliable and anti-vibration connections for your applications. Plus, benefit from their favorable pricing and ready availability in our stock.
FRANTIŠEK ĎURÍŠEK SOS electronic Product Specialist More articles from the author

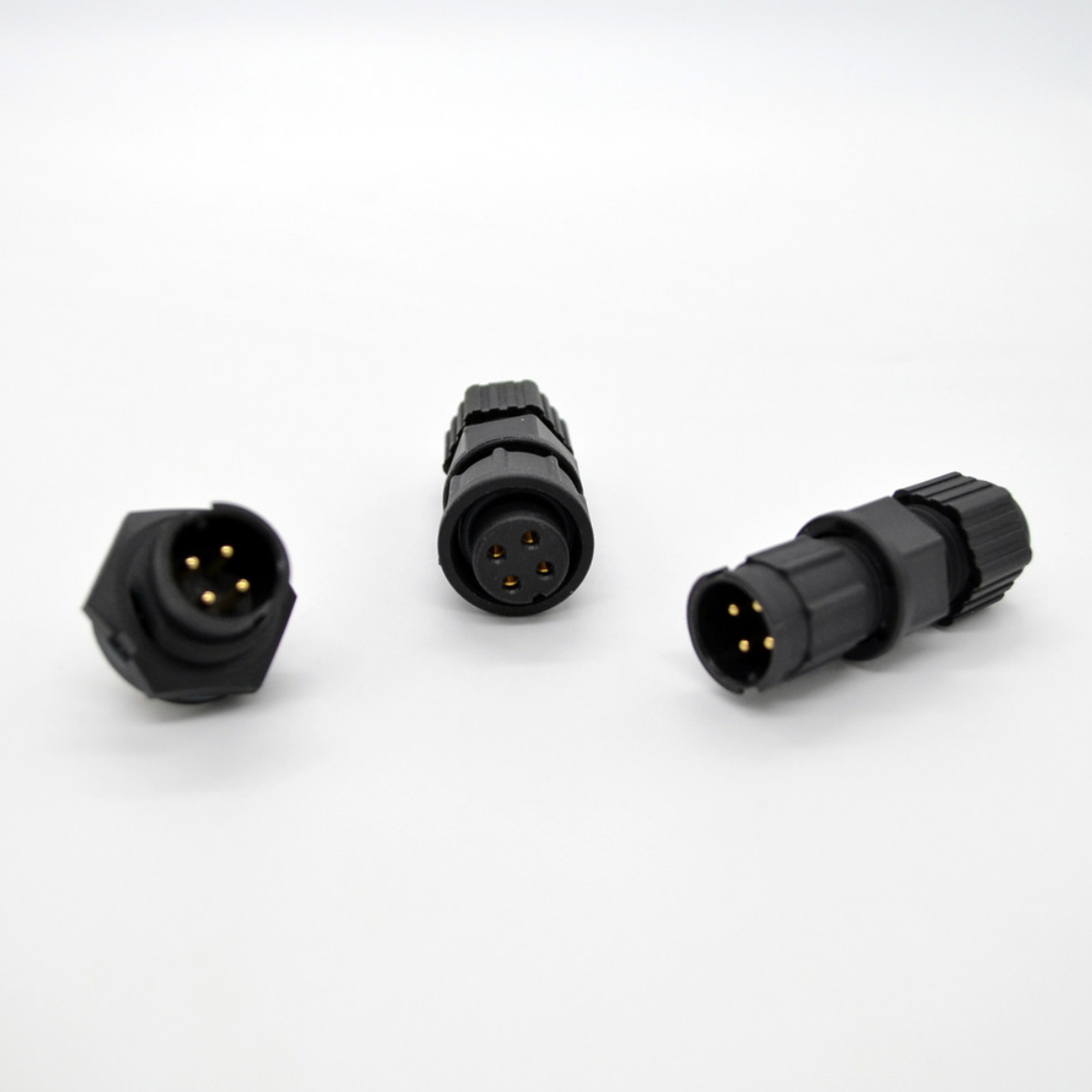

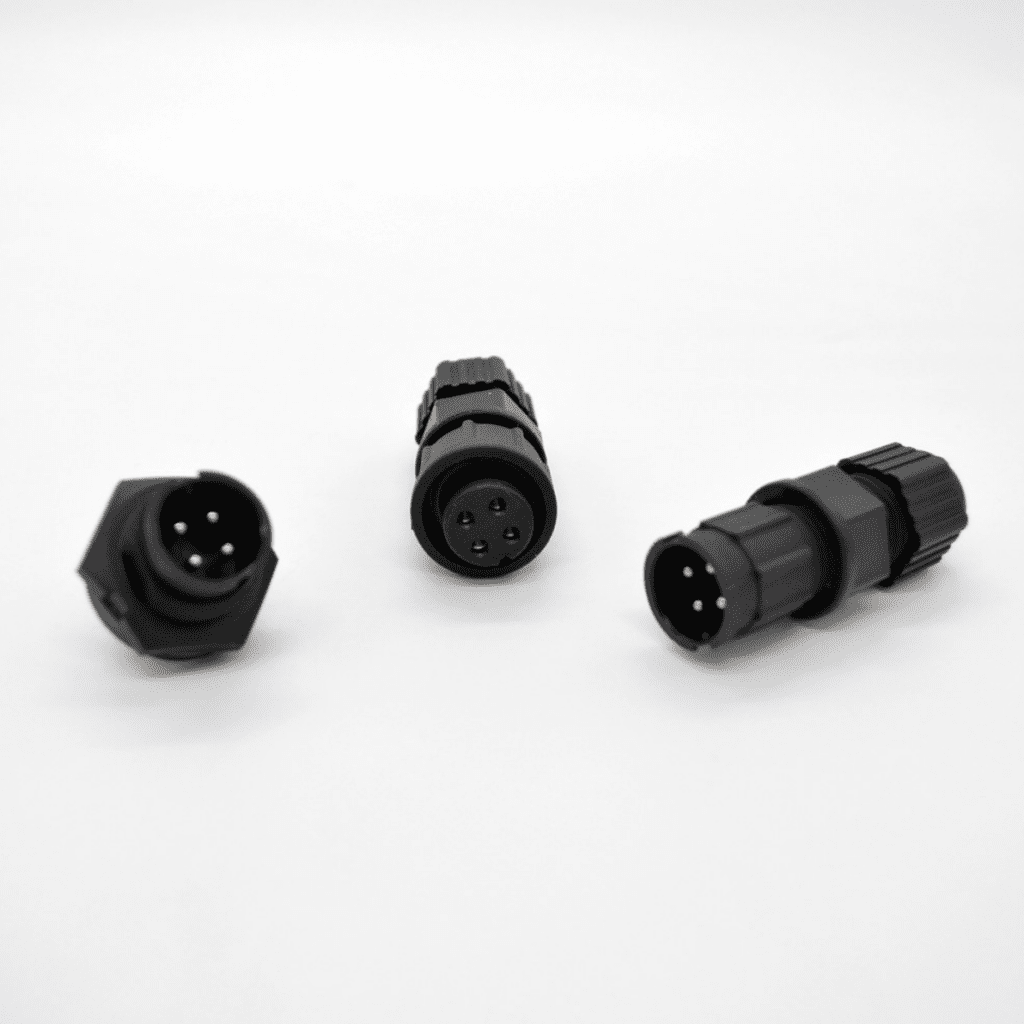

Round industrial connectors Attend, Series 227
Connectors with a bayonet locking system are circular connectors that allow for quick and secure connections, resistant to unintentional disconnection during vibrations. For many applications in the industry, they represent an ideal solution for interconnecting devices.
“When it comes to industrial connectors from the Attend brand, I was pleasantly surprised by the high-quality all-plastic design and the bayonet lock. Unlike connectors secured against disconnection by screws, these connectors feature a bayonet locking system. It’s a simple, fast, and reliable solution, so even when the devices vibrate, these connectors won’t loosen spontaneously. Moreover, these connectors can be conveniently attached to or detached from a device with just one hand,” says František Ďuríšek, Product Specialist at SOS electronic.
SOS electronic has added Attend‘s bayonet connectors of Series 227A, 227B, 227C, and 227D to the SOS electronic assortment, differing in dimensions, pin count (from 2 to 25), and current load capacity of contacts up to 20 A.
Advantages and features of Attend’s 227 series of round industrial connectors
Industrial connectors from Attend with a reliable bayonet locking system, quality design, versatile range, and various mounting options provide a fast, convenient, and above all, secure solution for a wide spectrum of applications.
The major advantages of the Series 227 connectors:
- Wide range of dimensions
- Wide range of pin counts
- All-plastic finish, PA66, UL94V-0
- Bayonet locking system
- Wide operating temperature range: -40°C ~ +85°C
- High number of mating cycles (1000)
- Gold-plated contacts
- Suitable for environments with vibrations
- Corrosion-resistant due to all-plastic body
- IP67 protection
Connection options for Series 227 connectors:
- On cable
- On panel
- On panel and simultaneously on PCB (DIP)
Accessories for round industrial connectors Series 227:

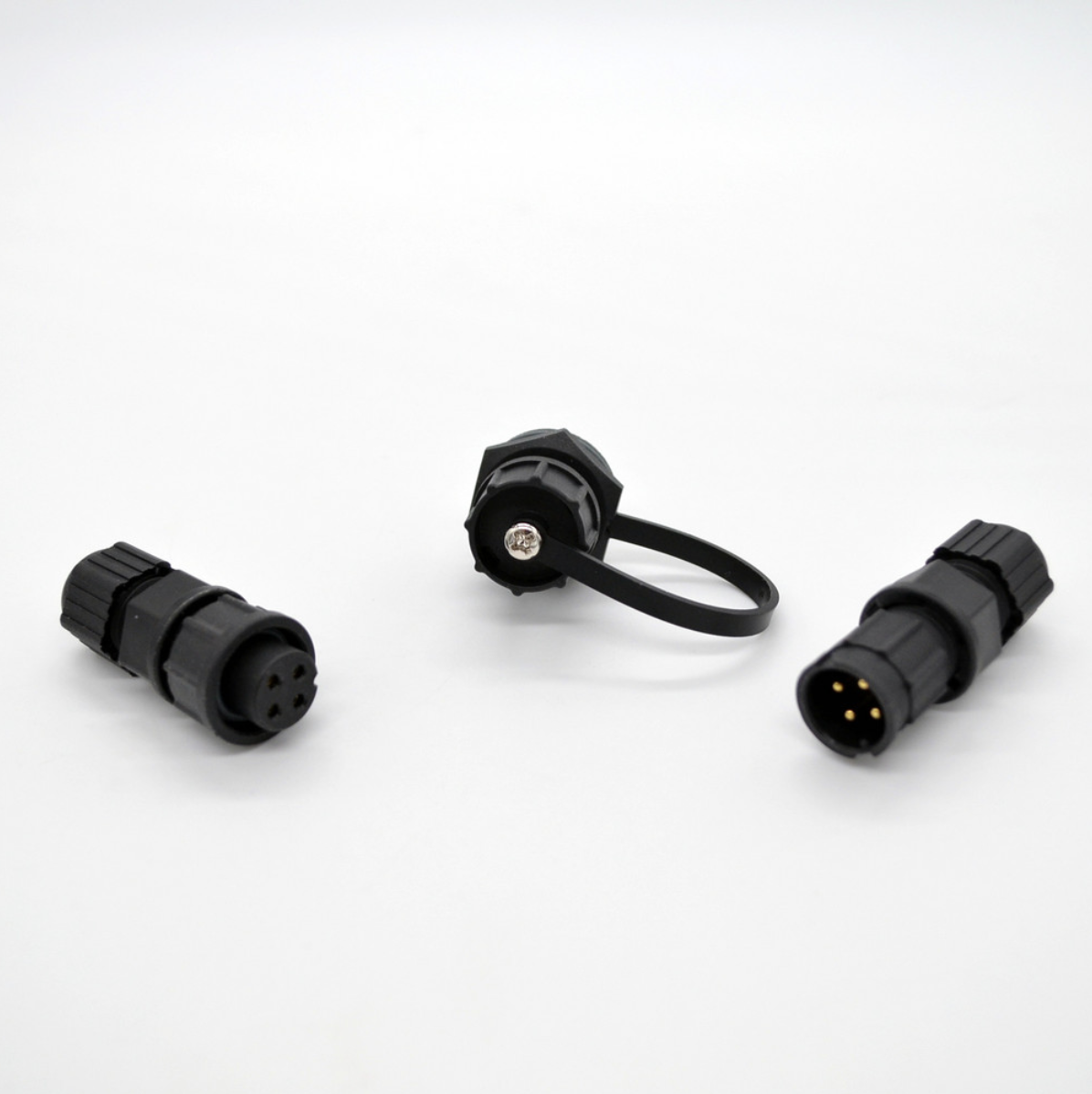

- Dust-proof protective cover for M (male) connectors on panels
Attend Series 227 connectors are suitable for applications in:
- Agriculture – greenhouses, machinery
- Industrial equipment
- Medical devices
- Aviation equipment – drones
- Construction machinery
- Testing and measurement devices
Marking of Attend’s bayonet connectors of Series 227
From the marking of these connectors, for example, 227A-03M03, we can deduce the series, connector gender, and pin count. However, the method of connection (to panel, cable, PCB) is not unambiguously indicated in the name, so we recommend always verifying the specific connector on SOS electronic website or directly on the Attend manufacturer’s web page.

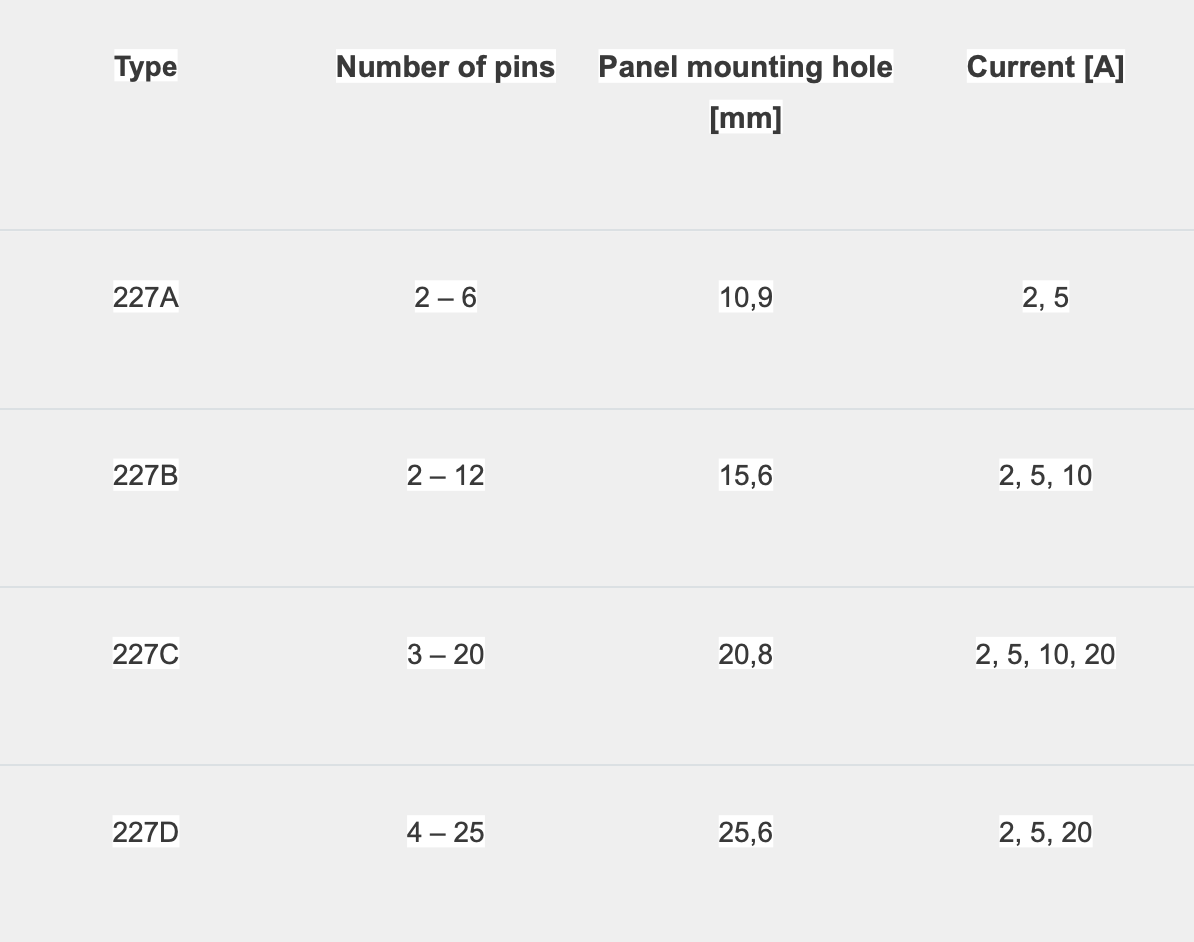

Based on basic parameters, we classify Attend’s round industrial connectors as follows:
The most commonly used bayonet connectors will be kept in SOS electronic´s stock to make them available to you as quickly as possible. We can provide you with other Attend round industrial connectors upon order.
“As a direct distributor of Attend, with whom we have also had a long-standing collaboration, we can offer you advantageous ready-made solutions, i.e. connectors with cables. Attend manufactures them according to the customer’s preferences and needs, starting from approximately 100 pieces,” concludes František Ďuríšek.
Are you interested in more information about Attend products or technical advice in product selection? Or do you have another question or request? Do not hesitate to contact us, experts from SOS electronic will be happy to help you.
