As computers embrace the era of faster M.2 2280 SSDs, Apacer leads the pack with exceptional speed, endurance, and efficiency. Compare speed, TBW, and power consumption to find the perfect SSD for your needs. Dive into the details and make your choice today.
MIROSLAV PISKOR SOS electronic Product Specialist More articles from the author
Computers for industrial use still predominantly employ 2.5″, mSATA, or M.2 SSDs with SATA 3 (6Gb/s) interfaces. However, gradually, computers that allow the use of even faster M.2 2280 SSDs with PCIe 3.0 [x4] or PCIe 4.0 [x4] interfaces are becoming more common.
Comparison of M.2 2280 SSD parameters

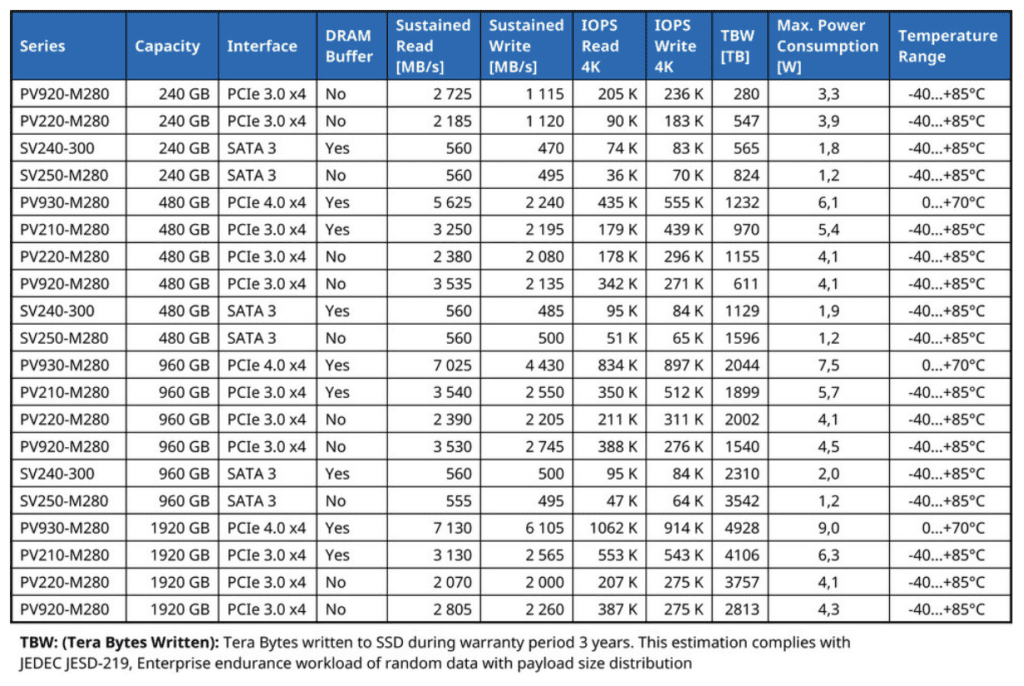

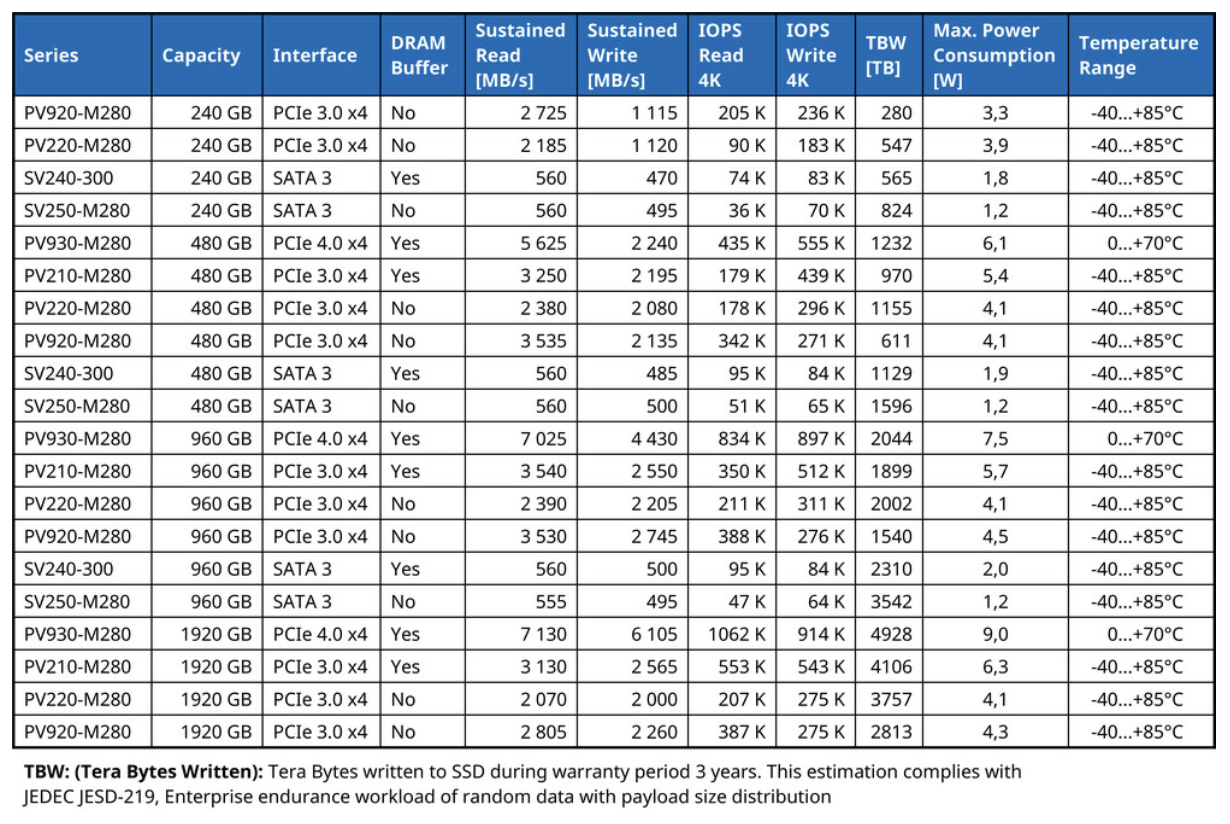

The table below summarizes the parameters of M.2 2280 SSDs based on BiCS5 112-layer 3D NAND memory. It is sorted by SSD capacity and the number of random 4KB block writes (IOPS write 4K).
Source:Apacer
From the table, we can draw the following conclusions:
- SSDs with PCIe 4.0 [x4] interface are the fastest but also have the highest power consumption. Currently, they are available only for the ambient temperature range of 0…+70°C. The minimum capacity is 480GB.
- SSDs with a capacity of 240GB and more, using the PCIe 3.0 [x4] interface, are significantly faster in all aspects compared to SSDs with a SATA interface. They are also available for a wider ambient temperature range of -40…+85°C.
- The SV220-M280 series with PCIe 3.0 [x4] interface provides the best compromise between speed, TBW, and power consumption.
- In terms of TBW and power consumption, the SV250-M280 series stands out as the best option.
You will find a wide range of Apacer industrial SSD disks in SOS electronic´s assortment. To support your projects, they gradually include SSDs with PCIe 4.0 and 3.0 interfaces to their stock offer.
