Witness the breakthrough in power density with Traco Power’s TEL 6(WI) DC/DC converters, boasting a remarkable 1.6 W/cm3 in the compact DIP-16 package. With a temperature tolerance up to +70°C, these converters showcase exceptional efficiency and minimal self-heating. Explore our selection of 42 new DC/DC converters for your power needs.
PAVEL KOVÁČ SOS electronic Product Specialist More articles from the author

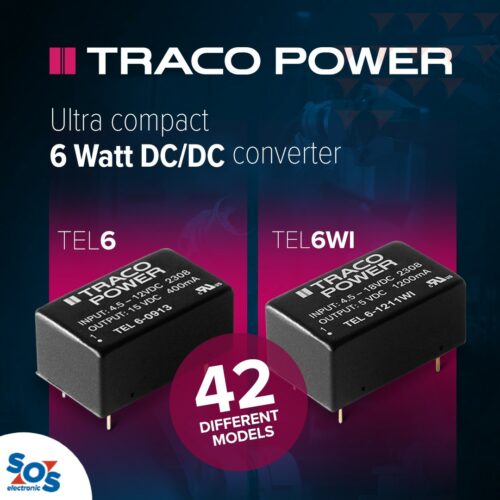

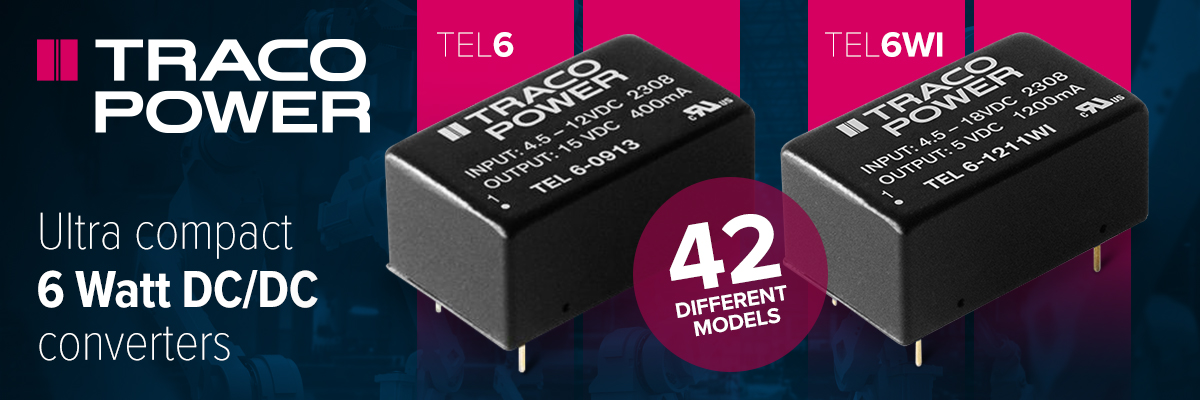

Miniature 6 W DC/DC converters by Traco Power for industrial applications Traco Power recently introduced two series of isolated 6W converters, TEL 6 and TEL 6WI, available in an ultra-compact metal DIP-16 package. They established a new packaging standard in this power range with a power density of 1,6 W/cm3 by almost doubling the power density compared to 6-watt converters in DIP-24 packages.
DC/DC converters of TEL 6 and TEL 6WI series offer a wide 2:1 or 4:1 input voltage range and feature a high efficiency of up to 87% which enables an operation temperature of up to +70°C at full load and up to +85°C with 60% load. With only a single input capacitor (SMD) the converters comply with conducted and radiated emission standard EN 55032 class A.
These two new series represent an efficient solution for space-critical and cost-sensitive applications in instrumentation, IT, and industrial electronics.
Main features of Traco Power DC/DC converters of TEL 6 and TEL 6WI series:
● Ultra-compact 6W converter in a metal DIP-16 casing
● High power density of 1.6 W/cm3
● 6-sided shielded metal case with an isolated baseplate
● Wide input voltage range of 2:1 and 4:1
● High efficiency (up to 87%) for low thermal loss
● Operating temperature range from -40…+85°C
● Complies with EN 55032 Class A standards (conducted and radiated) with a single input capacitor
● Short-circuit protection
„42 new 6W DC/DC converters from Traco Power in the metal DIP-16 package are now available in our product offer. Choose the suitable solution for your device, and we will ensure prompt delivery under favorable conditions directly from the manufacturer,” says Pavel Kováč, product specialist at SOS electronic.
The TEL 6 series represents an isolated 6-watt converter lineup, encapsulated within an ultra-compact DIP-16 metal package. Featuring a wide 2:1 input voltage range, the TEL 6 series achieves a remarkable efficiency of up to 87%, facilitating operational temperatures of up to +70°C at full load and up to 85°C at 60% load.
Overall they feature an economical solution for space-critical and cost-sensitive applications.
