Dive into Euroclamp’s latest innovation with their improved plug-in terminal blocks, designed for seamless wire-to-PCB connections. Featuring a simplified pin bar counterpart, this upgrade streamlines your assembly process. Discover more in just a quick 3-minute read!
PAVOL BUHLA SOS electronic Product Specialist More articles from the author
Euroclamp, the manufacturer and specialist in terminal blocks from Italy, has expanded its range of plug-in terminal blocks with a new, improved version of the wire-to-board (WTB) terminal block thanks to customer feedback, thereby enhancing the possibilities for solving their projects.

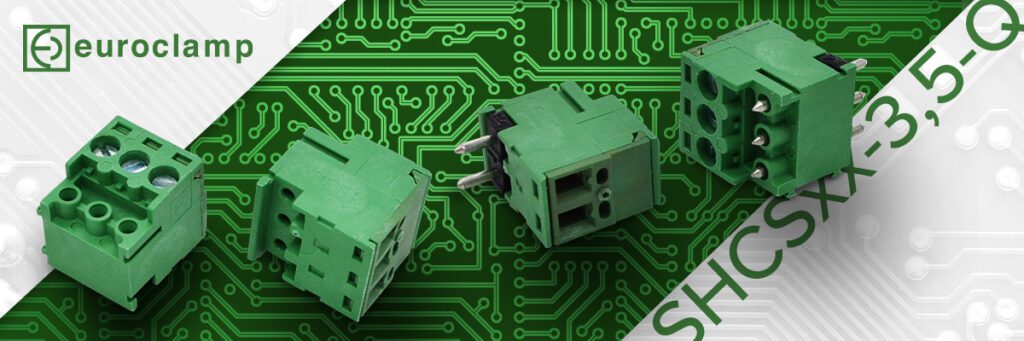

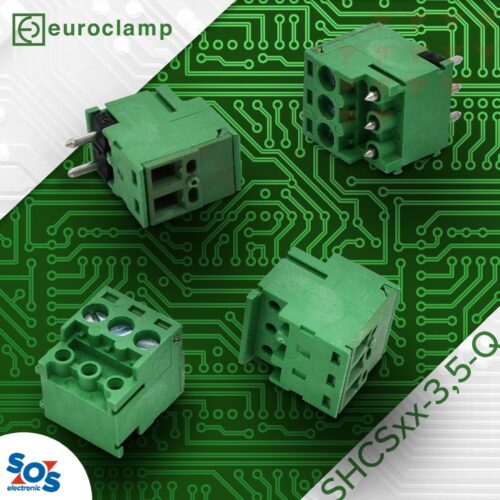

SHCSxx-3,5-Q – a compact version of the popular connector
The biggest advantage of Euroclamp is its willingness and quick response to customer needs, as well as its interest in feedback on its products.
Evidence of this is the plug-in terminal block SHCSxx-3,5-Q, a modification of the original version SHCSxx-3,5, where customers pointed out that one of its dimensions was larger than the standard version of most competitors. Euroclamp has eliminated this competitive disadvantage and introduced an improved solution.
The SHCSxx-3,5-Q series terminal block is a compact connector solution with a pitch of 3.5 mm, taking up minimal space on the PCB, as the pin strips do not in any way increase the required space for the connected terminal block. Pin strips from the PVSxx-3,5 series are suitable counterparts for integration into the PCB.
Here, you can also diversify the PCB with terminal blocks in up to seven different colors. As in the previous case, there is also the option to mark the positions according to your specific needs.
Features and advantages of the SHCSxx-3,5-Q series of terminal blocks:
- Number of pins: 2 – 24
- Operating temperature range: –40 to 130 °C
- Maximum current: 15 A
- Maximum voltage: 160 V (II/3)
- Wire cross-section: up to 2,5 mm2

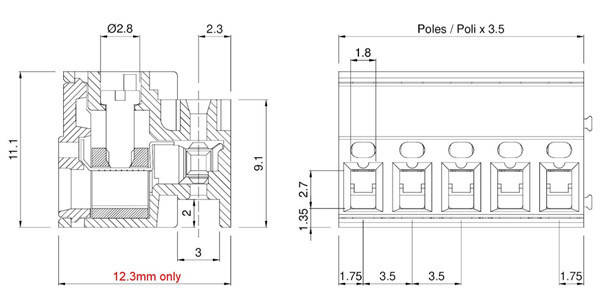

- Connector depth only 12,3 mm (the previous version was 14,2 mm deep)
Plug-in Connector F Straight+R/A Modular P3,5mm 2,5mm2 15A 2P Green
Our product offer includes a wide range of Euroclamp terminal blocks, which are available directly from stock for immediate availability for your projects. We’ll gladly secure the rest for you upon order.
Are you interested in more information about Euroclamp products or technical advice when selecting a product? Do you have any other questions or requests? Feel free to contact SOS electronic.
Try a sample for your project
