The USR-M100, an intelligent I/O gateway, boasts an array of features including built-in I/O support and RS 485/232/Ethernet interfaces. With a distinctive hardware and software design, this modular RTU device from USR IoT presents a cost-effective solution for industrial data collection needs.
PAVEL KOVÁČ SOS electronic Product Specialist More articles from the author
USR IoT (a subsidiary of Shandong PUSR IOT), long-term partner of SOS electronic and manufacturer, which takes pride in its manufacturing capabilities, quality, and reliability of its products and services, recently introduced a completely new generation of two I/O modules for data collection and control to the market.
I/O edge gateway USR-M100 is an intelligent gateway that incorporates edge computing power. It can collect Modbus data within milliseconds and immediately upload them to common MQTT platforms like AWS, ThingsBoard, or PUSR Cloud, enabling remote and real-time data monitoring. It also provides high flexibility and expandability through additional modules. The local I/O state processing feature allows for automatic control even in offline mode.
“Compared to the previous generation, the I/O edge gateway USR-M100 introduces a significant innovation, which is the PLC function. It is a user-friendly solution for data collection and control in the industry, with an excellent balance of price and performance,” said Pavel Kováč, a product specialist at SOS electronic.
USR-M100 – converter and PLC in one solution
The I/O edge gateway USR-M100 features a unique mechanical design that reduces the time required for installation and operation, simplifying deployment and maintenance. In addition, it supports the Modbus RTU Master protocol for data acquisition from serial meters and also supports OT/IT protocol conversion.
Thanks to its ability to convert between multiple protocols, the USR-M100 can convert collected I/O and serial data into protocols suitable for various higher-level software. For example, cloud services via MQTT, SCADA via Modbus TCP, web servers via HTTP, and more.
The 2-in-1 design reduces system complexity, the amount of space required in network topology, and overall installation time. Users can also connect their older devices to the Ethernet network, extending the lifespan of their devices because they can continue to use the original device protocols.
“A unique feature of this device is its ability to work as a PLC (programmable logic controller), meaning it can perform locally configured tasks based on input status, such as controlling pumps, fans, air conditioning, and other devices,” says Pavel Kováč, a product specialist from SOS electronic.
Features and functions of I/O edge gateway USR-M100
Functionality:
- Uses a powerful 32-bit Arm Cortex M7 processor with a frequency of up to 400 MHz.
- Provides remote serial access via the internet for industrial devices with a serial port.
- Features a 10/100 Mbps Ethernet port with Auto MDI/MDIX support.
- Offers versatile operation modes: TCP Server, TCP Client, UDP, HTTP client, Websocket server.

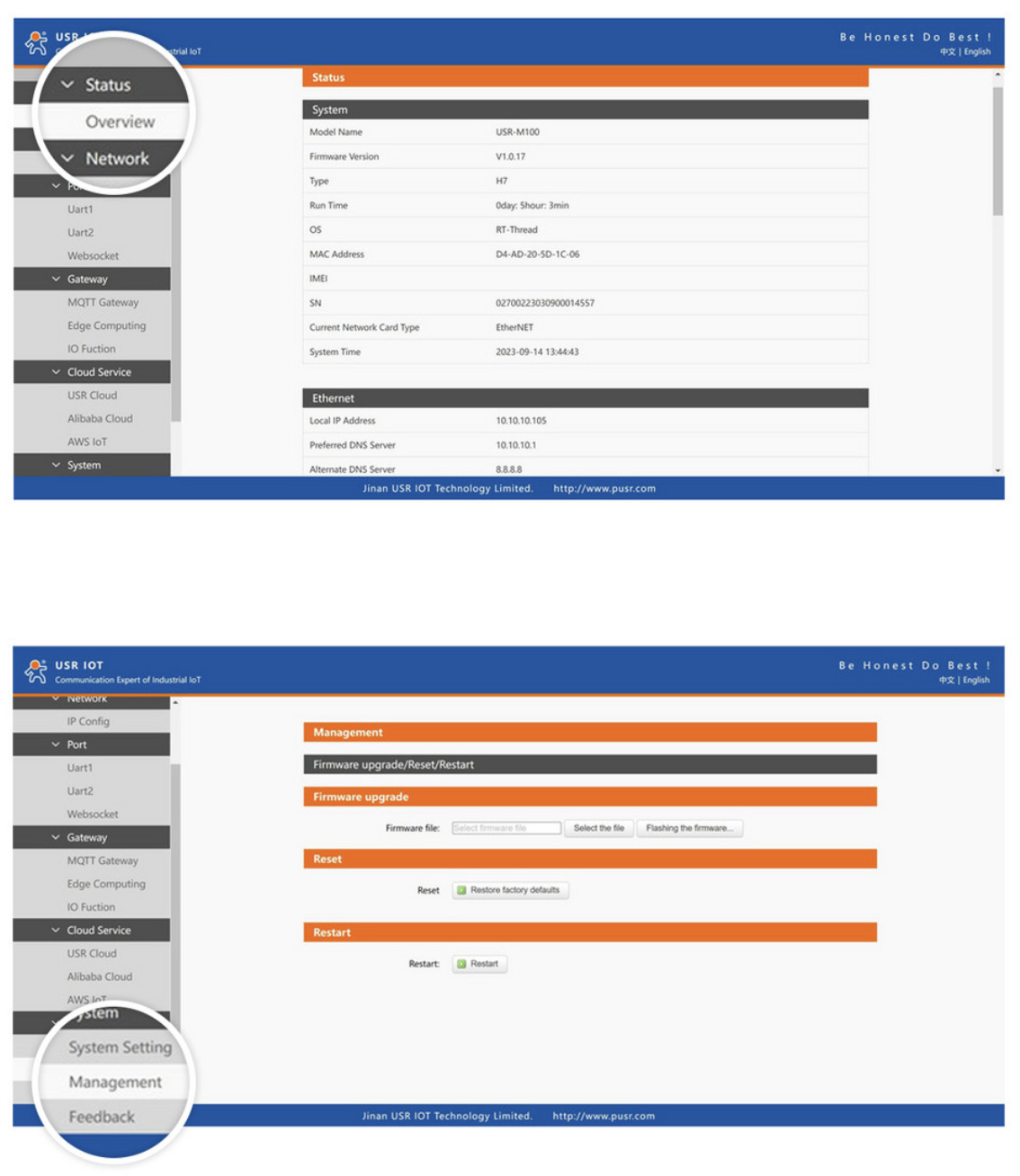

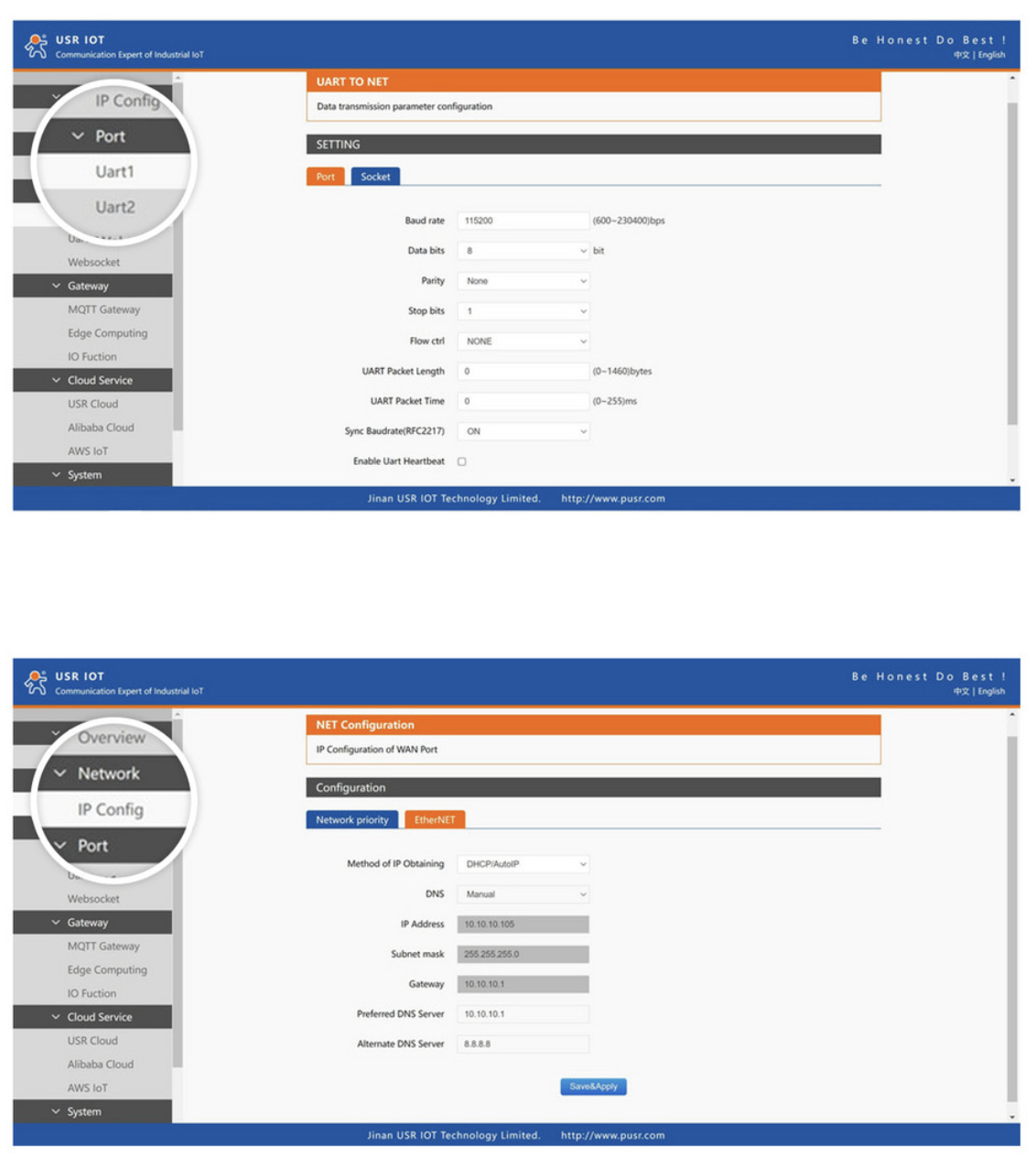

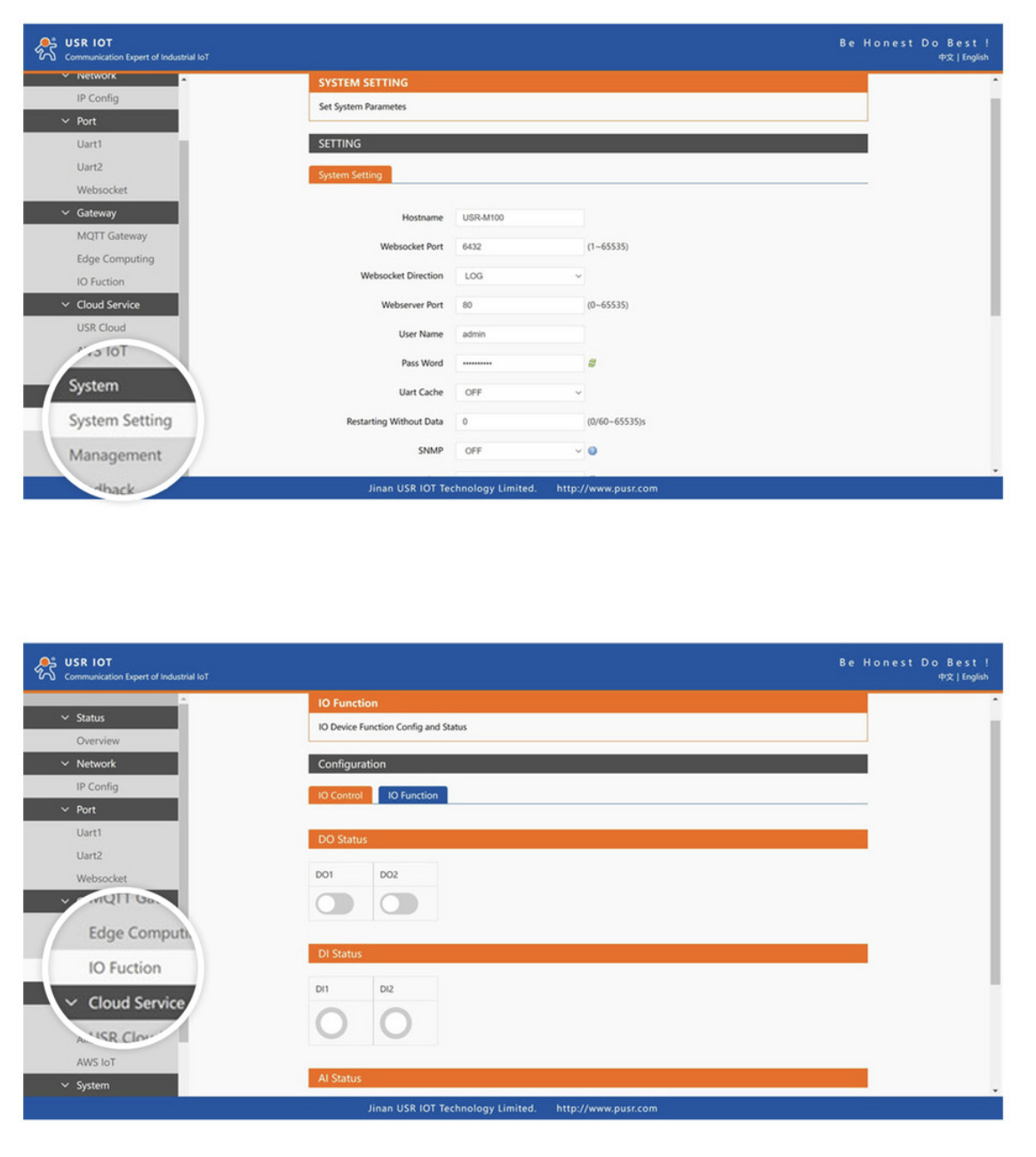

- Provides comprehensive configuration access, including a Windows configuration tool and a web browser.
- Firmware updates through a web browser and Windows configuration tool.
- Could support: MQTT via AWS IOT, Microsoft Azure, Thingsboard, Alibaba Cloud, EMQX, Tuya, Cumulocity IoT and so on.
- High security through certificate authentication, SSL/TLS encryption for serial data transmission, HTTPS, TCPS, MQTTS.
- Supports Modbus RTU master, edge computing, Modbus gateway, MQTT gateway.
- SNMP V1/V2c support.
Interfaces:
- Baud rate: 0.6 ~ 230.4 Kbps with adjustable baud rate settings, supporting: None, Odd, Even, Mark, Space Parity.
- Flexible data conversion to and from the serial port, capable of meeting various user requirements for data packet segmentation.
- Supports virtual COM USR VCOM (Windows).
- Supports Modbus Ethernet to Serial (Modbus/TCP, Modbus/RTU) for seamless integration of Modbus serial devices.
- On-board I/O support for analog input (2 AI), digital input (2 DI), digital output (SSR relay, 2 DO), expandable using I/O modules, supports digital output interconnection.
- Supports 2 RS485 serial ports, with the first being optionally RS232.
Electrical and mechanical features:
- Built-in 15 kV ESD serial port protection.
- Wide range of operating temperature: –40 °C ~ +85 °C
- Dimensions: 110 x 58 x 80 mm
I/O edge gateway USR-M100 is suitable for these applications:
- Agriculture – monitoring in greenhouses
- Smart buildings and smart homes
- Management in industrial automation
Availability of USR-M100 in the SOS electronic offer:
In SOS electronic range of Ethernet modules, they have included the USR-M100-ETH version with an Ethernet interface, as well as the USR-M100-EAU with a wireless LTE/4G module for locations where wired Ethernet is not available. Both versions are in their stock and immediately available for your projects.
