Traco Power expands the TMPW series with AC/DC converters featuring screw connectors for panel mounting, broadening their industrial automation applications. Request a sample for your project today!
PAVEL KOVÁČ SOS electronic Product Specialist More articles from the author
The Traco Power TMPW family consists of several AC/DC converters with a power range from 5 to 50 W and an extended input range of 90 – 305 VAC, suitable for industrial applications as well as automation power supply applications for homes and buildings.
New connection method of Traco Power AC/DC converters of TMPW series
To expand the range of applications in industrial automation, Traco Power has introduced AC/DC modules with screw terminals as an additional type of connection. This has resulted in a series with three different types of connections (through-hole, JST, and screw terminal) in combination with the standard features of the Traco Power TMPW series power supplies.
Pavel Kováč, a product specialist at SOS electronic, comments on this innovation: “Screw terminals offer several advantages when used in power modules on chassis. They provide a secure and robust connection, are easy to install, and do not require special tools or skills, such as wire crimping. Moreover, screw terminals are suitable for a wide range of wire sizes and types, making them versatile for various applications. This flexibility is especially important for power modules to adapt to different design preferences and industrial standards.”
I/O – with an isolation voltage of 4000 VAC, a temperature range of -40 to +70°C, and compliance with safety standards such as IEC/EN/UL 62368-1 and EN 60335-1, these AC/DC converter series are suitable for a wide range of industrial applications and applications in home and building automation.
Key features of TMPW AC/DC converters by Traco Power:
- Compact panel-mount power module
- Wide input voltage range, 90 – 305 VAC
- Certified according to EN 60335-1 and IEC/EN/UL 62368-1
- I/O isolation of 4000 VAC
- Operating temperature range from –40 °C up to +70 °C
- Input power without load <0.1 W (according to ErP directive)
- High efficiency, up to 88 %
- Built-in EN 55032 class B filter
- Ready for protection class II
- 3-year product warranty

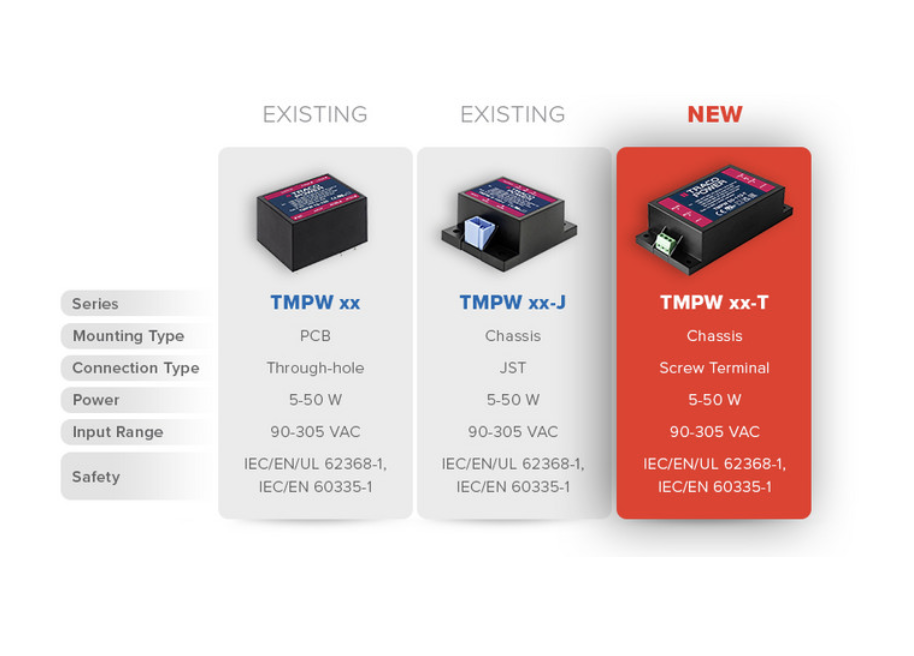

Overview of Traco Power TMPW AC/DC converters by connection type:
“In short, screw terminals offer reliability, ease of use, versatility, and the benefits of efficient maintenance for panel-mounted power modules. These advantages collectively contribute to the overall performance and user-friendliness of AC/DC converters in various applications,” concludes Pavel Kováč.
Are you interested in more information about Traco Power power supplies or technical advice in product selection? Or do you have any other questions or requests? Please don’t hesitate to contact SOS electronic; they would be happy to assist you.
