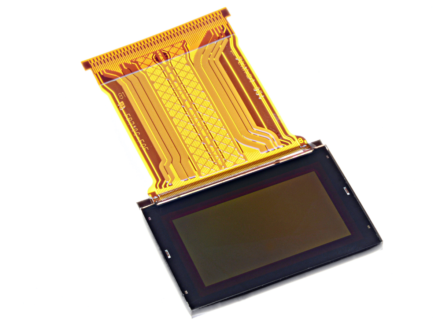

FRAMOS, a global partner for vision technologies, now offers the new ECX335S microdisplay series from Sony Semiconductor Solutions. Featuring outstanding brightness, contrast and resolution plus a wide viewing angle, this solution is suited to the fast-growing market of augmented reality (AR) devices. These include head-mounted displays (HMDs), electronic viewfinders (VFs), and small monitors. The ECX335S is an OLED panel module with active matrix colour design, exceptional brightness of up to 3,000 cd/m², Full HD resolution with 1,920 x 1,080 RGB pixels, and a diagonal of 1.8 cm (0.71 inch). Its power consumption is low even at a frame rate of 60 fps.
AR applications require brightness in excess of 1,000 cd/m². This means the OLED microdisplay must have a nominal value of at least 3,000 cd/m², to allow for transmission losses during projection. Through a clever combination of enhancements, Sony Semiconductor Solutions has increased the brightness of the new ECX335S microdisplays by a factor of three compared to previous models, while maintaining the same operational life. With its brightness characteristics, extremely small form factor (21.44 mm x 15.62 mm) and a contrast ratio of 100,000:1, this module will continue to spur innovative AR solutions. Information levels in the HMD or VF are rich in contrast and blend seamlessly into the real world, creating a “real” AR experience.
