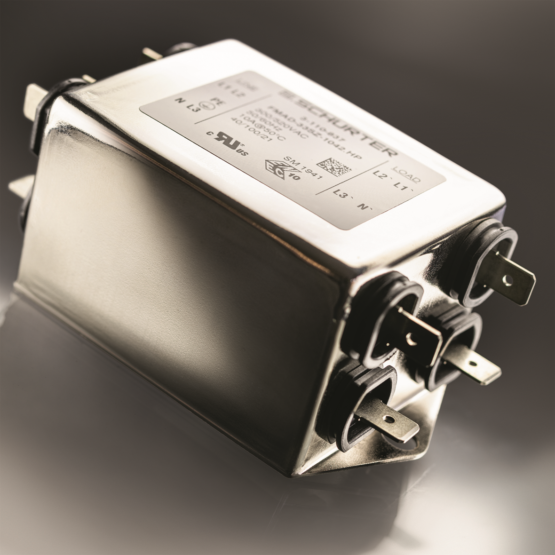

FMAD CP: 3-phase built-in filter with neutral line
FMAD CP is the name of the latest 1-stage filter family for 3-phase systems with neutral line. Thanks to their extremely compact dimensions and high performance, the new filters are ideally suited to the tight space conditions in today’s machine and equipment construction. Thanks to an extended temperature range, they can also be used in critical applications. |
The new filter family is ideally suited for devices with high EMC loads at low or medium power. Typical applications include converters for photovoltaics, battery storage or charging stations for electric vehicles. These powerful, particularly compact filters are also the first choice for modern frequency inverters for motor control.
Installation
The FMAD CP filter series has 6.3 x 0.8 mm plug-in connections for quick and easy wiring. Thanks to a metal flange, a good earth connection is guaranteed when screwed to the chassis.
Wide temperature range
The standard versions can be used over a temperature range of -40 °C to 100 °C. The filters are designed for currents from 3 A to 20 A at an ambient temperature of 50 °C. They have ENEC and cURus approval and are recommended for applications up to max. 520 VAC.
Leakage current
Versions with different leakage currents are available for various applications: for industry ≤ 3 mA, standard ≤ 0.5 mA and for medical technology ≤ 5 µA.
