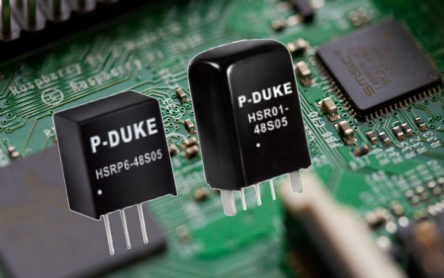

The HSRP6 and HSR01 series of POL dc/dc converters provide 0.6A and 1A output current.
These non-isolated supplies, support a very wide input range of 9-72VDC and are up to 94% efficient.
The series offer outputs ranging from 3.3V to 24V
These POL products are installed near the load in the power distribution systems.
Their industry-standard SIP3 footprint is compatible with well-known LM78 linear units and solve their problems of thermal and insufficient output current.
Samples are available for evaluation on short leadtimes, contact our power specialists for more information.
Features
- Non-isolated Step Down DC/DC Converter
- Output Current Up to 1A HSR01 , or 0.6A HSRP6
- Very Wide Input Range of 9-72VDC
- Up to 93% Efficiency
- OCP, SCP, OTP
- Industry-standard SIP3 Package
- Pin-out Compatible with LM78xx Linears
