SV Microwave’s High Frequency, High Performance Millimeter Wave PCB Connectors
SV Microwave’s high frequency, high performance millimeter wave PCB connectors have the precision, quality and frequencies needed for the millimeter wave spectrum through 67 GHz. Industries are requiring higher frequencies to optimize the higher speed applications in the market and SV has your solution. SV’s millimeter wave PCB profuct line includes 2.92mm, 2.4mm, and 1.85mm and are available as solder-on and solderless edge launch, surface mount and through hole variations.

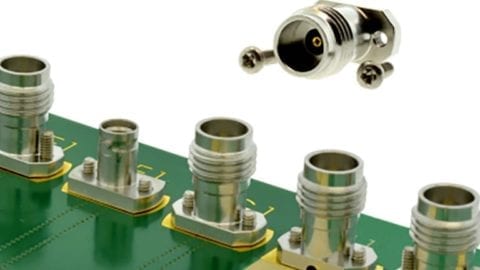

Solderless Compression Mount PCB Connectors
High speed RF/coaxial solderless compression mount connectors are ideal for high frequency printed circuit board applications where precision is key. SVMicrowave’s solderless application makes assembly fast, easy and without damaging the PCB board. Current interface configurations include our high frequency SMA, 2.92mm, 2.4mm and 1.85mm.
Features & Benefits:
- Edge launch and surface mount variations available
- Connectors are available with and without screws
- Series: SMA, 2.92mm, 2.4mm and 1.85mm
- DC to 67 GHz
Applications:
- 5G Wireless / IoT (Internet of Things)
- High Speed Digital
- Test & Instrumentation
- Dev Boards
