The second-generation wired Ethernet gateway and device server offers secure network connectivity with built-in device management and cloud connectivity in the same portable design as the Lantronix XPort.
PAVEL KOVÁČ SOS electronic Product Specialist More articles from the author.
A little device with incredible computing capability that can easily complete almost any task

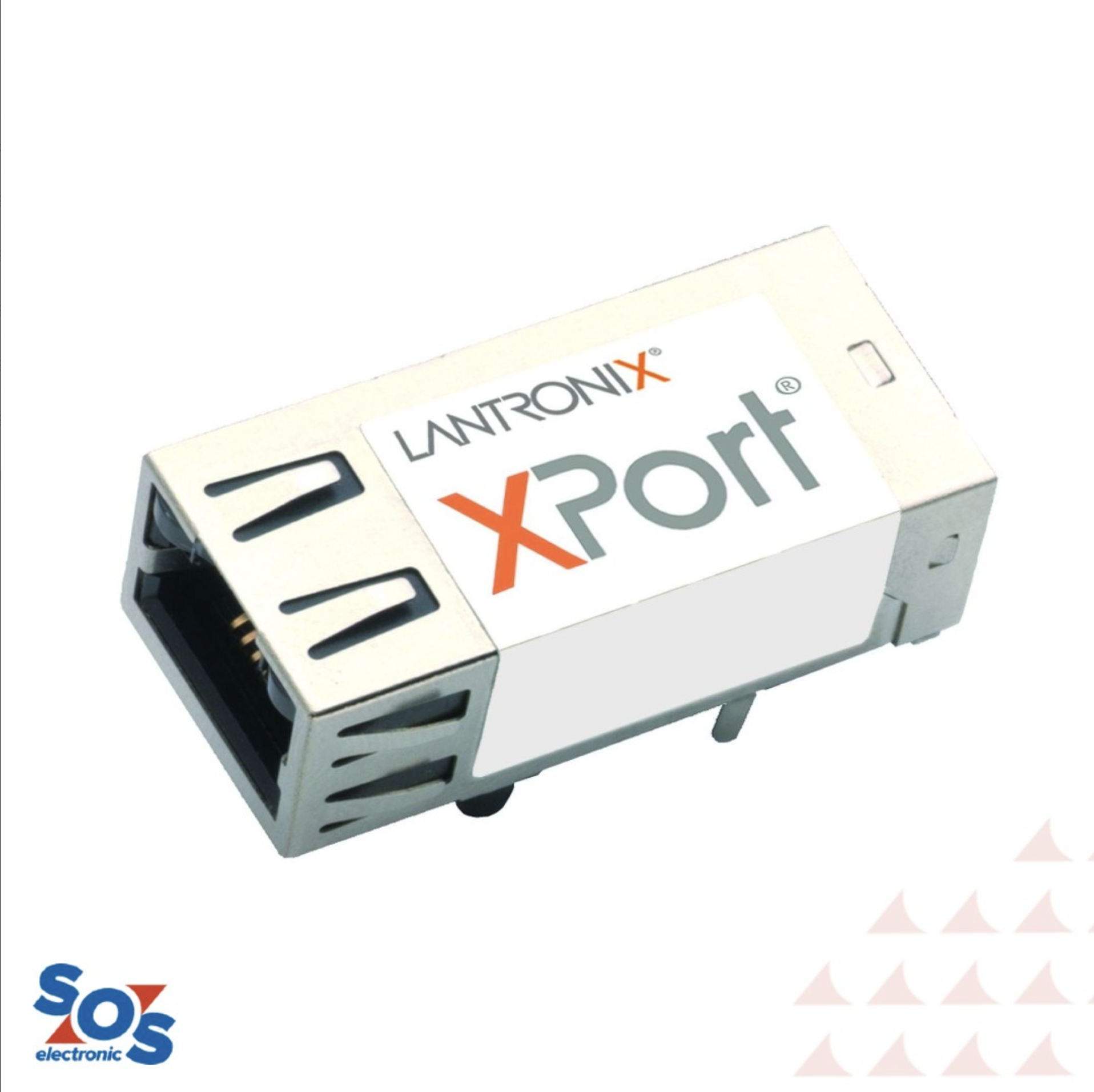

XPort® EDGE is the only network communication engine for secure IoT connectivity and remote management that fits within a standard Ethernet connector.
Requiring minimal engineering effort, the XPort® EDGE allows device manufacturers to add fully integrated, secure Ethernet connectivity and remote control of their products in a few weeks. Running on Cortex R4 MCU with up to 320MHz frequency and packed with 8MB SPI Flash memory, this tiny device offers enormous computing power capable of solving virtually all tasks easily. Consuming only 160mA (100Base-T) at 3.3VDC, its power efficiency is much better compared to the previous XPORT – Generation.
Data Communication
- TruPort® Serial Technology — TCP and UDP Server Mode, TCP and UDP Client Mode, Multi-host Connect; TLS Client and Server
- TruPort® Socket — Multi-host Client and Server Modes, HTTP(S) Server
- Authenticated SMTP Support — Send email directly from the device
Security and Authentication
- TruPort® Security Software
- Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates
- Secure Key Storage, Encrypted Configuration
- Secure Connections with SSL/TLS, HTTPS
- Software Controlled Network Service Ports Enable/Disable
- Role-Based Access Control
- IEEE 802.1X Network Access Control (EAPOL)
- SSLv3/TLS 1.2 with PKI and X.509 Certificates (up to 2048-bit Keys)
- TLS 1.2, AES (256-bit, 192-bit, 128-bit), up to 4096-bit RSA keys, SHA-2
Developer Tools
- SDK available for download from Lantronix
- For more information, refer to XPort EDGE SDK User Guide
Certifications
- FCC, EU, Canada Class B emission/immunity and UL/CB 60950/62368 safety.
- For other certifications, please refer to the XPort EDGE Data Sheet.
Key Features:
- Network & IoT Offload
- Full IoT Gateway Functionality in a single RJ45 package
- Industrial-grade Security
- Robust Data Handling
- Integrated Device Manageability
- Cloud Ready
- Faster Time to Market
- Lower TCO
- Quickest Integration
XPort® EDGE is currently available directly from SOS electronic´s stock.
Are you interested in more information about Lantronix products or technical advice when choosing a product? Or do you have another question or request? Contact SOS electronic sales representatives at [email protected]
