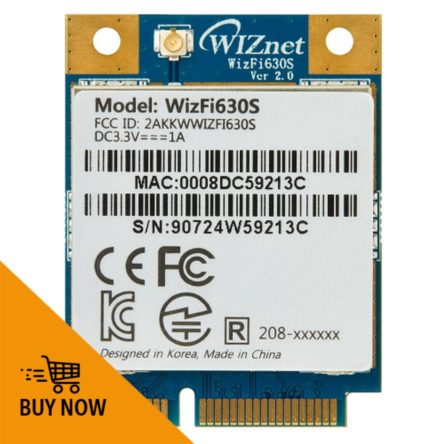

WizFi630S is a gateway module integrating 1T1R 802.11 Wi-Fi, 580MHz CPU, Ethernet PHY, USB2.0 host, SD-XC, I2S, I2C and other GPIOs.
WizFi630S allows a device with a serial interface to connect to LAN or WLAN for remote control, measuring, and administration. WizFi630S can also work as an IP router because of its internal embedded switch. It supports interfaces like Serial (UART), LAN, and Wi-Fi(WLAN). Functions such as Serial (UART)-To-Wi-Fi, Serial-To-Ethernet and Ethernet-To-Wi-Fi are supported by scripts and/or commands in OpenWRT.
Users can connect to WizFi630S’s internal web server or use the serial commands for simple Wi-Fi settings – not only for serial devices but also 8/16/32 bit MCUs can use UART for simple Wi-Fi settings. WizFi630S can significantly reduce the procedures for wireless module design, testing, and certification. This tiny module is an ideal solution for users who lack wireless network experience. WizFi630S follows the 802.11b/g/n standard and supports up to 150Mbps speed in wireless interface.
You can use the WizFi630 evaluation board to test the module; all needed documents are available online. Technical support is directly from the manufacturer.
