With switch mode, the Ultrasonic sensor will output an on/off signal when object is detected within certain distance (user-defined). With serial mode, the actual distance value (cm) is calculated and output via TTL/RS232. With PWM mode, the sensor ouptput PWM signal from raw date.

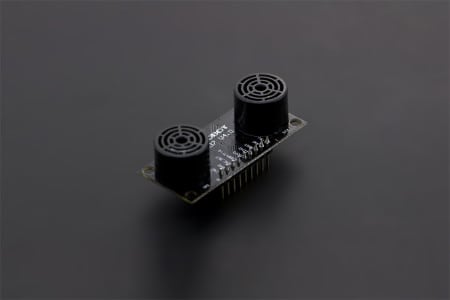

URM37 V4.0 Ultrasonic sensor, the current version has better intelligence capabilities, meanwhile, mechanical dimensions and pin interface and communication commands are compatible with V3.2, V3.2 has been reversed based on the following changes:
- Serial level selected from the skipped stitches to button, user can easily select RS232 or TTL-level output level output by pressing the settings(after reboot)
- Modified the algorithm, so dead zone was reduced and enhance accuracy
- Analog voltage output, voltage and the measured distance is proportional
- Wide voltage support +3.3V-5.0V
- Power reverse protection
- Automatic measurement of time interval can be modified
- Modify a servo controlled angle of 0-180, compatible with most of servos on the market
- Refresh rate is now set to 10hz.
SPECIFICATION
- Power: +3.3V~+5.0V
- Current: <20mA
- Working temperature: -10 ~ +70 C
- Detecting range: 5cm-500cm (2-196 in)
- Resolution: 1cm (o.39 in)
- Interface: RS232 (TTL),PWM, Switch, Analog
- Size: 22mm (0.87 in)× 51 mm (2 in)
- Weight: 25g
