A wide range of Traco power encapsulated 10W AC/DC converters are unique for the design which is ultra-compact and for its efficiency which is very high. Typical use of these converters is in home electronics and communication. (SOS electronic)

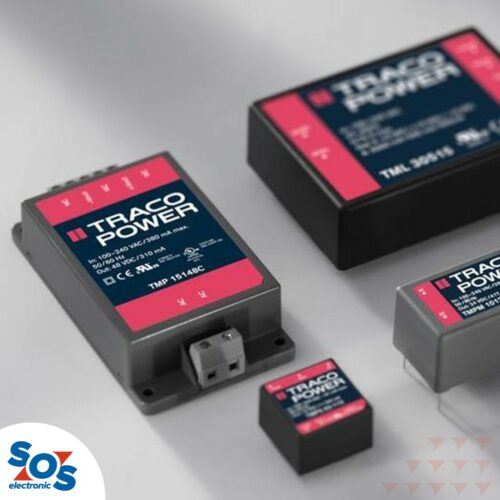

Traco Power offers a large range of fully encapsulated power modules with more than 200 standard models. They are available for PCB mount, chassis mount with screw terminal block or blade connector, or with flying leads for installation into standard flush boxes.
Power supplies are the most stressed parts of electronic devices. They must withstand wide temperature ranges, and because they also generate heat by converting input energy to output power, high efficiency is a crucial parameter for every such power supply.

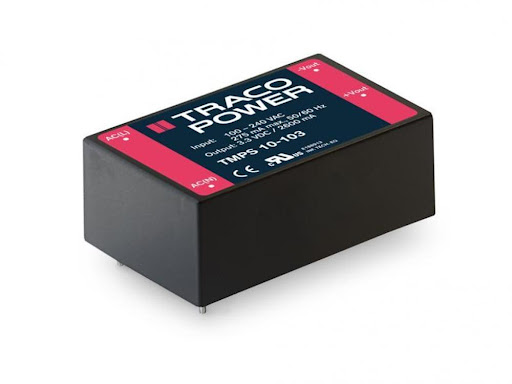

TMPS10 (TMPS10)(e.g. TMPS 03-103)
The TPMS 10 series comprises ultra compact AC/DC power supply modules in a lightweight, fully encapsulated plastic casing for PCB mount.
Besides the latest safety approvals for industrial and IT solutions (IEC/EN/UL 62368-1), they are also certified as per IEC/EN 60335-1 for household appliances.
These 10 Watt modules are ideal for low power or segregated circuits when space is critical or for an efficient powering of a standby mode when compliance to the ErP directive is required.
The TMPS series offers 3 W and 5 W TMPS 03 (e.g. TMPS 03-103), and TMPS 05 (e.g.TMPS 05-103) power supplies are, along with the 10 W version of the TMPS10 (TMPS 10-103), available in our assortment upon request.
If you are interested in other Traco Power products or you need more information, don’t hesitate to get in touch with SOS electronic at [email protected].
Main features:
- Compact PCB Power module in1″ x 1.5″ package
- Certified as per EN 60335-1 and UL 62368-1 for household and industrial appliance
- Reinforced I/O isolation 4000 VAC
- Operating temperature range –2 5 °C to + 70 °C
- Allows 130% peak current up to 30 s
- Ready to meet ErP directive, < 0.15 W no-load power consumption
- 7 versions with single output: 3, 5, 9, 12, 15, 24, 48 VDC
- EMI meets EN 55032 class B and EN 55014-1
- Protection class II prepared
- 3-year product warranty
