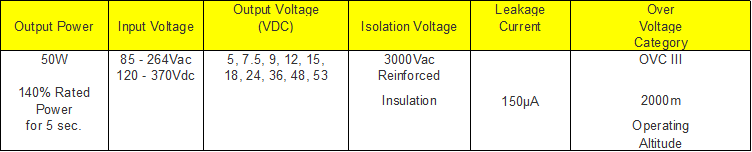

P-DUKE has added the new TAD50 series to its open frame power supplies portfolio from 15W to 450W. It has a compact 3″x1.5″ footprint and delivers 50W continuous output power. In addition, a peak power function is available that enables the power supply to deliver up to 140% of rated output power for 5 seconds. This series is designed with a high conversion efficiency of 90.5% to 92.5%, enabling full-power operation from -40℃ to +55℃ ambient temperature without derating or forced air cooling. With forced air cooling or with output power derating the TAD50 series can perform up to +85℃. The universal input voltage range is 85-264Vac (120-370Vdc) and outputs are available from 5, 7.5, 9, 12, 15, 18, 24, 36, 48 and 53Vdc with output adjustability of -10% to +10% or -20% to +10%, depending on output voltage.
The TAD50 series features full protection against output short-circuit (continuous, automatic recovery), over-load (hiccup mode, automatic recovery) and output over-voltage (latch mode). The TAD50 series allows operating altitudes of up to 5000m and has a 3kVac/ 1 minute reinforced I/O-insulation and over voltage category OVC III. The integrated EMC filter complies with EN 55032, class B for conducted and radiated emission.
The use of high-quality components, excellent thermal management, 50mW no load power consumption and high efficiency make these power supplies suitable for a variety of industrial applications where both AC and DC inputs are required e.g., ITE (audio/video, information and communication technology equipment).
Features
- Up to 92.5% Conversion Efficiency
- Up to 140% Rated Power for 5 seconds
- Over Voltage Category OVC III
- Approved to IEC/EN/UL 62368-1 for AC and DC Input
- Compact 3″ x 1.5″ x1.24″ Package
- Operating Altitude to 5000 m
- Operating Temperature Range -40°C to +85°C
- 3 Years Product Warranty
