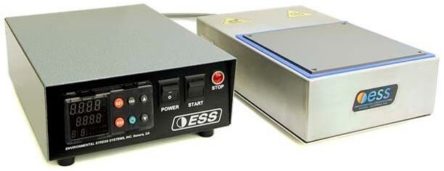

The T600 thermal platform system is the traditional configuration offering a thermal plate with a separate & remote temperature controller.
- Precision ground aluminum alloy thermal plate
- Very fast heating & cooling ramp rates
- Extremely efficient cooling channel design
- Corrosion proof 304 stainless steel chassis
- 2nd user device under test sensor
- Ramp to set point & prog. ramp & soak profiling
- Modbus RTU EIA(RS)-232/485 serial comms
- Surface hard plated for extremely long wear
- Comes with Configurator® utility software, molded serial cable & external 232 to 485 converter
Heating of the plate is provided by resistance elements and cooling by the expansion of liquid Carbon Dioxide (LCO2) or liquid Nitrogen (LN2) in a computer designed and CNC machined precision channel embedded within the platform.
Dry boxes utilizing a dry Nitrogen (GN2), or very dry air, purge the system allowing moisture and frost free testing below dew point. Ground & plated fixturing adapter plates, and our universal hold down clamping arm, are quick & easy ways to attach devices to our platform. Insulated supply hoses are also available.
