Use the 3W converter in the same situation if the 1W DC/DC converter in SIP4 is insufficient for your application. The TMU 3 series from Traco Power is the most compact 3W DC/DC converter in a tiny SIP4 container to date. It is a more affordable option than converters with stable output. It is perfect for use in industrial electronics and communication equipment. reading time: two minutes
PAVEL KOVÁČ SOS electronic Product Specialist More articles from the author.
AUDIO https://play.acast.com/s/62b4100a3fff010014bb1f2c/63a03c831770e20011c6b8b8

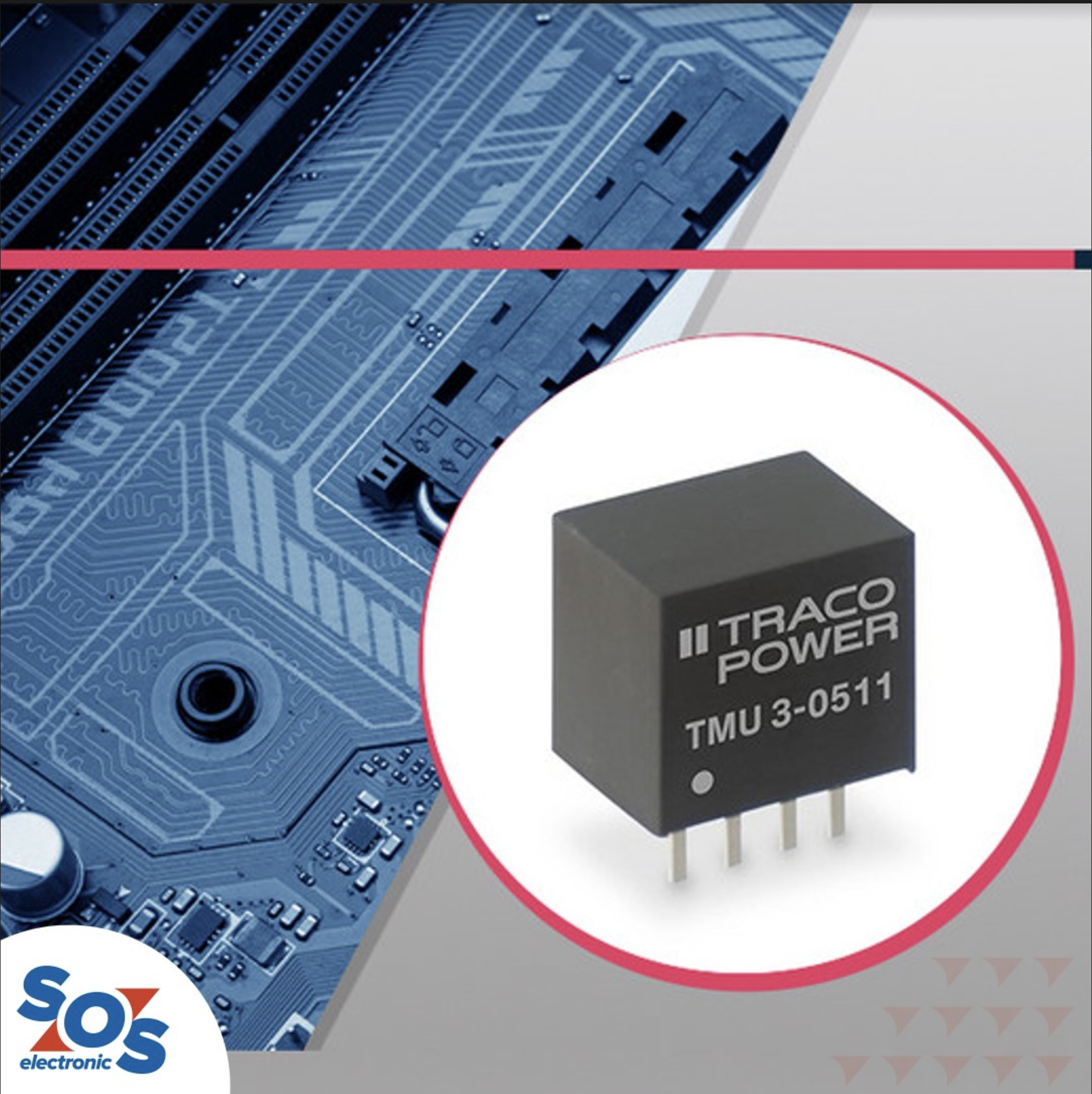

TMU 3 Traco Power’s 3W DC/DC Series of Converters in SIP-4
TMU 3 Series consists of a family of isolated 3W DC/DC converters with non-stabilized outputs in a standard SIP-4 case. All available versions are designed to offer a compact and cheaper alternative to the series with stabilized output, of course without compromising on quality and durability.
All converters in this series feature permanent short-circuit protection, 1500 VDC I/O isolation and an operating temperature range from -40°C to +75°C without performance degradation. Thanks to their compact dimensions, these 3W DC/DC converters are an ideal solution for many space-critical applications, especially in communication devices, various portable devices and in industrial electronics.
Key features of 3W DC/DC converters of TMU 3 series:
- compact 3W converter in SIP-4 package
- continuous short-circuit protection
- unregulated outputs
- operating temperature range – 40 to + 75 °C without performance degradation
- I/O isolation: 1500 V DC
- input voltage ranges (±10%): 5, 12, 24 V DC
- high efficiency up to 86%
- 3-year product warranty

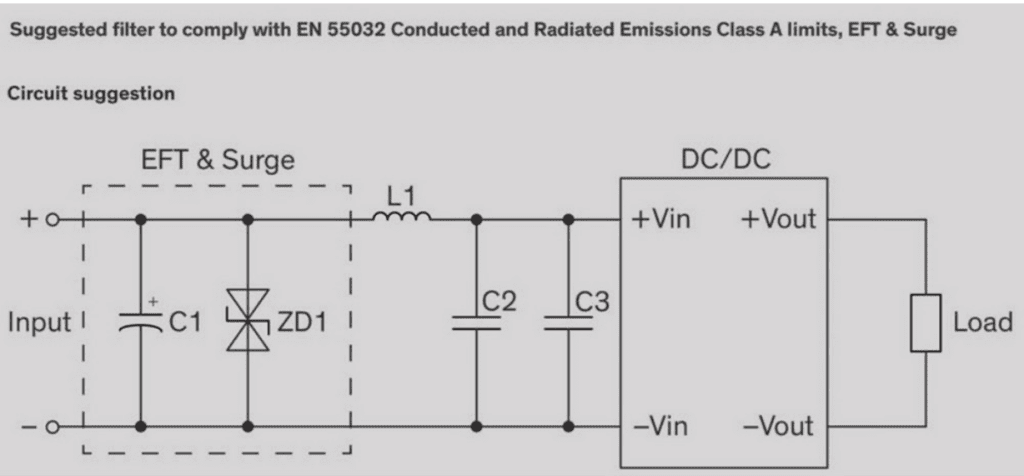

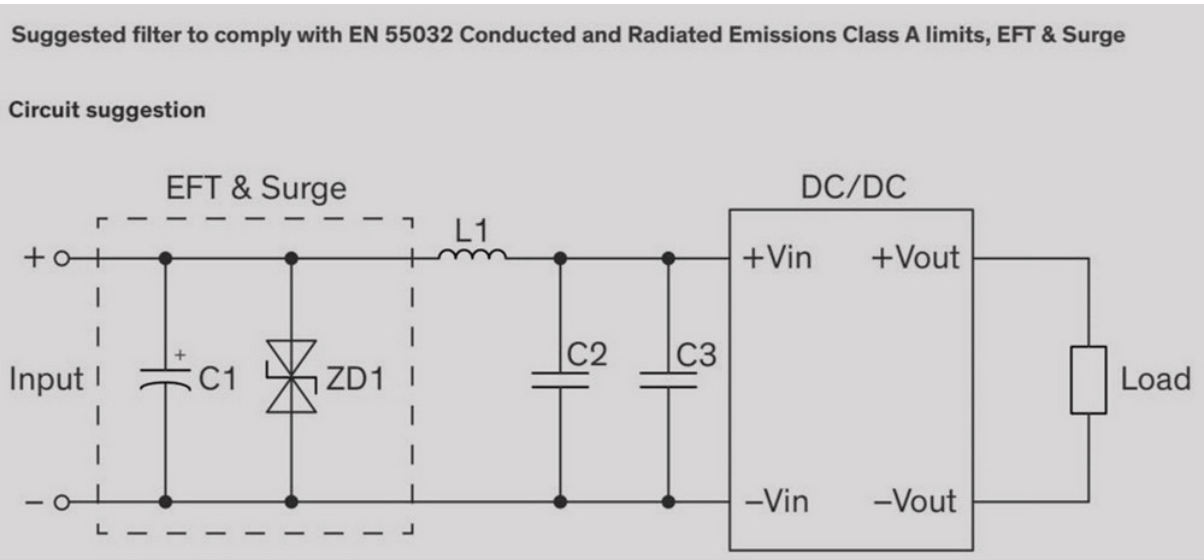

The following wiring diagram is how DC/DC converters should be connected to the circuit, per the manufacturer.
For more detailed information on how to integrate the TMU 3 series into an EN 55032 compliant device, please refer to the TMU3-Application Notes document.
We have included the entire series of 3W DC/DC converters by Traco Power in our assortment and it is available to order. More technical and business information can be found on our website under the details of a specific product.
Videos
TMU 3 – Compact unregulated 3 Watt DC/DC converters
https://youtu.be/Eb2o56iOGZg
Traco Power TMU 3 is a compact unregulated 3 Watt DC/DC converter (SIP-4). It is designed to offer a compact low-cost alternative to regulated series with no concession on quality and lifetime. They feature a continuous short circuit protection circuit, I/O isolation of 1500 VDC, and an operating temperature range from –40°C to 75°C without derating.
