TESEO LIV3F module evaluation board

This product is available from a number of ECIA authorized distributors, click the buy now button below to compare real-time pricing and stock information
Click to purchase parts now

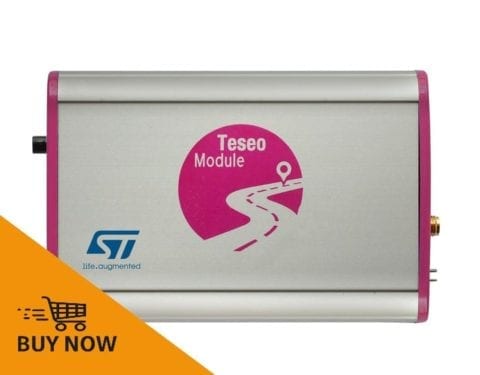

EVB-LIV3F board is a complete standalone evaluation platform for Teseo-LIV3F GNSS module ST solution.

Teseo-LIV3F embeds the high performance ARM microprocessor with embedded flash, UART and I2C serial communication interfaces. Performance and configuration can be analyzed using the ST Teseo Suite Light PC Tool .1

Key Features

  • ST Teseo-LIV3F GNSS platform
  • Multiconstellation GNSS: GPS, Galileo Glonass, Beidou, QZSS supported
  • USB Power Supply and battery charge
  • Internal battery footprint for standalone usage
  • ON/OFF and Reset buttons available
  • NMEA over
    • UART by USB
    • I2C by connector
  • PPS output
  • Leds:
    • PPS
    • Power
