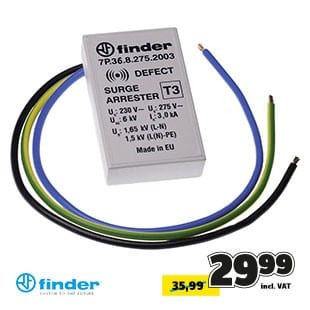

Surge suppressor series 7P type 3 UP
Technical data
| Category | Surge protection (built-in) |
|---|---|
| Surge prtection for | Junction box |
| Leakage current | 3 kA |
| Nominal voltage | 230 V |
| Operating temperature | -25 to +40 °C |
| IP rating | IP20 |
| Manufacturer part # | 7P.36.8.275.2003 |
| Type | Type 3 flush-mounted |
| Length | 49 mm |
| Width | 29 mm |
| Height | 12 mm |
Highlights & details
- Leakage current 3 kA
- SPD type 3
- Installation in flush-mounted socket
Description
Varistor between L-N and transmission path between N-PE. For 1-phase TN-S and TT-nets. With acoustic signal when the varistor failure. Electrical connections are neutral polarity. Test device in case of service.
