Inside any product today, there is a strong likelihood there will be at least one PCB on a circuit design. Electronic components enable all classes of end-products, providing everything from power conversion to process control. For small and portable devices, the need for densely populated PCBs is apparent, but the trend for smaller outlines and lower profiles now extends to all products. Size matters, of course, but it is also a matter of mass production and lowering the average selling price through high volumes. In order to be competitive, most active and passive electronic components have to be offered in a surface-mount package if at all possible.
The underlying technology has been around for decades, but it continues to evolve, aligned with the semiconductor industry’s insatiable thirst for higher functional density – but the benefits associated with surface-mount technology (SMT) extend to all applications areas. These can be summarized, as shown below.
Cost:
The cost of an integrated device is linked to its size in terms of the materials needed to produce it. This is one reason why the die inside integrated devices gets cheaper as it shrinks in size, thanks to Moore’s Law and developments in the fabrication process.
However, it is also important to appreciate that the cost of manufacturing the PCB is also reduced when using surface-mount devices (SMDs) instead of through-hole components. This is because the automated production assembly is more efficient, quicker and less prone to error. Manufacturing errors are extremely expensive, in relative terms, and it may not be cost-effective to rework a PCB with misplaced through-hole components, improper solder connections and other issues induced by human error. SMD components are placed atop the board with pick and place machinery, and solder flows on one side only, which is more easily controlled and more efficient. SMD assembly is automated, which reduces the amount of human interaction and labor required and, therefore, the cost of production.
Space:
Of course, SMDs are smaller than their through-hole counterparts. This is essentially because the pitch between the SMD pads is much smaller than the pitch between pins on a through-hole component. The larger pitch of a through-hole pin is needed to support the hole diameter and the pad around the hole for the solder to bond with.
A smaller pad pitch translates to higher PCB density and, in turn, a smaller PCB. The cost of PCB fabrication is typically based on the physical dimensions of the PCB’s footprint, so a smaller footprint also means a lower PCB cost.
Quality:
While all components are produced to high quality standards, there is less chance for manufacturing errors when using surface-mount components. This means the overall level of quality for the end-product goes up.
Limitations:
The clear advantages of SMT would suggest it should be used exclusively. However, there are good reasons why through-hole packaging is still important. Foremost, SMT is mainly restricted to low power active (semiconductor) devices and is less suitable for high-voltage discrete power semiconductors, such as MOSFETs or IGBTs (although they are available). Similarly, high power passive components are not suitable for SMD packaging, and these types of components are likely to use leads for mounting them on a PCB, so they will always be associated with through-hole technology.
The Evolution of Surface-Mount Packaging
SMT is a constantly developing area, where specialists in the final assembly and test of electronic components are always looking at new possibilities.
Integrated Circuits:
Integrated circuits are the primary driver in SMT. As logic transistor dimensions continue to shrink and their density increase, new packages are developed to take advantage of the higher level of integration. Surface-mount ICs are predominantly packaged in leaded or leadless outlines. Leaded packages take the form of the J-lead (which curves away from the body of the package) and the Gull Wing (which curves under the package). Leadless chips feature arrays of balls or flush pads. The contacts on these packages are often arranged in a grid, which means a package can have many more pins than a leaded chip, which only has four edges available to it for contact placement.
Actives:
The use of discrete transistors is still widespread and these, too, are available in surface-mount outlines. The Small Outline Transistor, or SOT package series, is used for small-signal transistors but can also accommodate a reasonable amount of power for switching transistors.
Passives:
Surface-mounted two-terminal passive components are believed to be the most prolific, and it is easy to see why. For every single integrated circuit there are perhaps ten or more passive components supporting it. With dimensions that measure as little as 0.125 mm by 0.25 mm (008004), they are little more than the size of a dust mote. It is hard to believe they could be made any smaller. These types of devices are also used in modules that, themselves, may only measure a few mm on each side.
Connectors:
The benefits of SMT relate to automated manufacturing. These benefits are also present for components whose outline may need to comply to a fixed shape and size. Here, the attraction is not just in reducing the overall size of the component (although that is also possible with connectors) but also in improving the overall manufacturing process. This is one of the motivations behind developing surface-mount PCB edge connectors.
Trends in Surface-Mount Technology
Advancements in automated manufacturing and assembly have enabled new possibilities in the design and construction of electronic components. Surface mount technology is the perfect companion to these advances, enabling engineering teams to innovate at a greater scale.
Surface- Mount Transformers:
The IoT has generated many new applications, many of which need both power and communications but can be located in hard-to-reach places. This may include smart sensors and actuators that require reliable wired connectivity and a continuous power supply. In these cases, PoE (Power over Ethernet) has become hugely popular. To support PoE in small endpoints like those found in the IoT, Signal Transformer has developed a range of surface-mount PoE (SPoE) transformers. These SPoEs are ideal for connected devices such as VoIP phones, IP cameras and intercoms, as well as wireless access points and network routers designed for the IEEE802.3AF and AT domain.
Power Inductors:
Surface-mountable wired wound inductors are now widely available. Signal Transformer has a portfolio of SMD inductors in open frame and shielded formats. They are available in both high and low current configurations, with inductances up to 1500 µH.

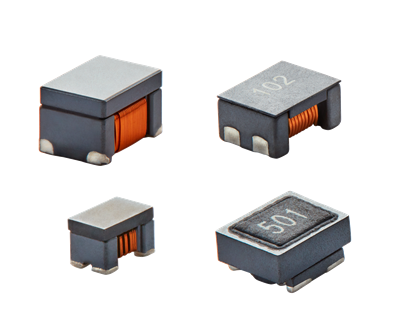

Chokes:
Common mode noise, which is present on differential signal lines such as Ethernet, CAN and even USB, can cause EMC compliance issues. Chokes are used to suppress the electrical noise on the signal lines. As products have become smaller, the need for smaller chokes has also arisen. This is where SMD common mode chokes like those made by Signal Transformer can be found. These high-performance devices measure just several mm on each side and are available in a number of impedances.
Wireless Charging Coils:
Many of the latest portable devices, such as smartphones and wearables, now utilize wireless charging. The technology is based on inductive coupling, allowing power to flow between two devices in close proximity but without any electrical connection. As the devices being powered are typically small, SMT is the perfect solution to mounting the wireless charging coils that need to be located within the devices. Signal Transformer’s wireless charging coils (WCCs) are available in configurations comprising single, double and multiple windings. The technology allows both power and data to transferred between two devices without the cost or physical exposure that mechanical interconnects require.
Modules:
More semiconductor manufacturers are turning to modularized solutions that use multiple devices packaged in a single component. The modules are often provided in surface-mount packages, as it complements the modular format. Many of these modules are able to switch considerable levels of power and their use is increasing in high-voltage applications, such as electric vehicles.
Conclusion
Surface mount technology continues to evolve and deserves its position as the preferred format for modern electronic equipment. Innovations such as surface mount transformers and wireless charging coils support the improvements being made in discrete power device and other passives, including inductors and chokes.
Engineers can anticipate even more options in the future, as companies like Signal Transformer continue to invest in the segment and take surface mount technology even further.
