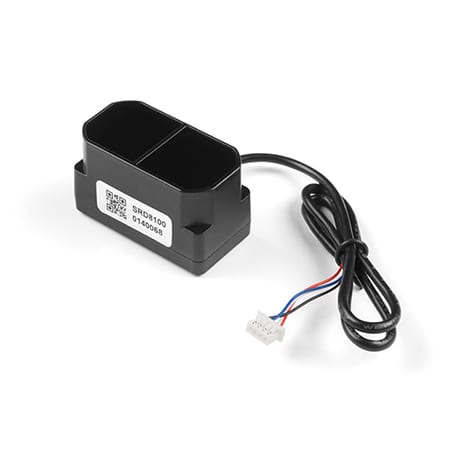

The TFMini Plus is a ToF (Time of Flight) LiDAR sensor capable of measuring the distance to an object as close as 10 centimeters (+/- 5cm up to 6m) and as far as 12 meters (+/-1% starting at 6m)! As with all LiDAR sensors, your effective detection distance will vary depending on lighting conditions and the reflectivity of your target object, but what makes this sensor special is its size. Measuring only 35×18.5x21mm, the TFMini Plus allows you to integrate LiDAR into applications traditionally reserved for smaller sensors.
Setting itself apart from the original TFmini, the TFmini Plus has been designed with an IP65 enclosure meaning its “Dust tight & water resistant”, and also passed the vibration test of drone level, which will greatly expand its application range. The TFMini Plus is easy to power at only 5V and easy to talk to using common communication interfaces — UART, I/O and I2C.
Features:
- Operating Range – 0.1m~12m①
- Accuracy – ±5cm@(0.1-6m), ±1%@(6m-12m)
- Distance resolution – 5mm
- Frame rate – 1-1000Hz(adjustable)
- Ambient light immunity – 70klux
- Operating temperature – -20℃~60℃
- Enclosure rating – IP65
- Light source – LED
- Central wavelength – 850nm
- FOV – 3.6°
- Supply voltage – 5V±0.5V
- Average current – ≤110mA
- Power consumption – 550mW
- Peak current – 500mA
- Communication level – LVTTL（3.3V）
- Material of enclosure – ABS+PC
- Storage temperature – -20℃~75℃
- Weight – 11g
- Wire length – 30cm
