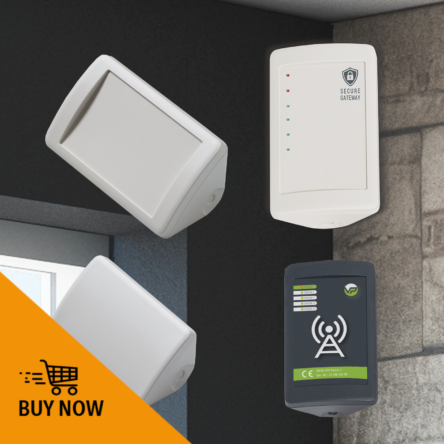

OKW has launched SMART-CONTROL – its first plastic electronic enclosure designed especially for room corners. It can be mounted on ceilings and walls using the suspension element, or on a table-top using the desktop stand.
Wedge-shaped SMART-CONTROL is perfect for a wide range of applications including security and monitoring, environmental technology, IoT/IIoT, gateways, measurement and control, sensors, control electronics, medical and laboratory technology.
Ideally, the enclosure should be mounted as close to the ceiling as possible; this high position is ideal for wide-area room monitoring, saves space and protects the equipment from damage or tampering.
Two versions are available, offering either a convex front or a recessed operating area for a membrane keypad. No fixing screws are visible from the front; all the stainless steel tamperproof Torx screws are at the rear. PCB mounting pillars are moulded in both the top and bottom sections.
SMART-CONTROL is available in two sizes: S (142 x 81 x 46 mm) and M (173 x 101 x 59 mm). The enclosures are moulded from strong, UV stable ASA+PC-FR (UL 94 V-0). The standard colour is off-white (RAL 9002). Prices start at £19.
Options and accessories for this new range include IP 55 seals, a wall suspension element (for 90° inside corners or flat surfaces), an ergonomic desktop stand (viewing angle 45°), Torx T8 self-tapping screws and a Torx T8 screwdriver.
SMART-CONTROL is available in custom colours. Other customising options include CNC machining, lacquering, printing or laser marking of legends and logos, decor foils, EMC shielding, installation and assembly.
Visit the OKW website for more information: https://www.okw.co.uk/en/Plastic-enclosures/Smart-Control.htm
