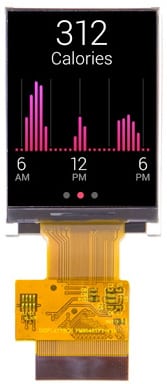

The DT022CTFT is a 2.2 inch TFT LCD module with 240 x 320 RGB resolution. This LCD module is the only high resolution 2.2” TFT on the market that is designed specifically to fit 1U rack mount equipment. The a-Si TFT LCD uses a single chip driver (Ilitek ILI9341) that provides a full color display mode of 262K colors.
This slim 2.2” LCD module includes a color TFT LCD, a driver IC, FPC, and a white LED backlight unit. View the data sheet and additional resources for the DT022CTFT display below.
TECHNICAL INFORMATION
| DIAGONAL SIZE | 2.2 in |
| RESOLUTION | 240 (RGB) x 320 |
| MODULE SIZE | 38.5 mm (W) x 56.16 mm (H) |
| ACTIVE AREA | 33.84 mm x 45.12 mm |
| PIXEL SIZE | 0.141 mm x 0.141 mm |
| VIEWING DIRECTION | 6 o’clock |
| INTERFACE TYPE | RGB / MCU |
