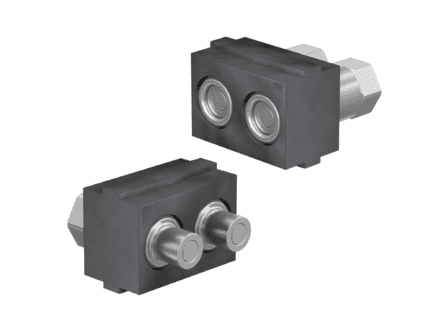

The modular CombiTac range from Stäubli Electrical Connectors has added a new fluid coupling module. Its shorter 11mm stroke enables the LCT06 coolant coupling to be used for fluid and pneumatic transfer in a DIN housing as well as panel mount applications.
Safety and reliability are ensured by shut-off valves on both sides, and a double flush face prevents leakage. A slightly larger bore size delivers a higher flow rate and lifetime is as much as 100,000 mating cycles. The operating temperature range is -15°C to +90°C.
The LCT06 has nitrile (NBR) O-rings as standard, but LCT/JE (EPDM) and LCT/JV (Viton) are available on request.
Both socket and plug couplers can be used in the existing single and double pole CombiTac carriers, and can be combined with a wide variety of other contacts including data, fibre optic, power, coaxial, high current and high voltage.
An interactive configuration tool on the dedicated CombiTac web site www.combitac.com enables engineers to build modular assemblies online, explore the final product, review assembly dimensions and request a quotation.
