This compact ebm-papst fan, about the size of a tennis ball, features a high-performance, high-efficiency EC motor (up to 38,000 rpm) producing airflow of up to 513 l/min. With vibration-damping materials and optimal aerodynamics, it operates in near silence.
PAVOL BUHLA SOS electronic Product Specialist More articles from the author
“The RV45 fan from ebm-papst was developed for the needs of a medical breathing device. This DC centrifugal fan has, however, exceeded expectations, It has been further developed for the use in industrial applications and is coming to market as the RVE45 model,” says Pavol Buhla, SOS electronic product specialist manager.
Centrifugal fan RVE45 by ebm-papst
The main pride of the RVE45 fan is its extremely dynamic EC motor offering fast and at the same time reliable switching between high-pressure mode and significantly reduced-pressure mode. The high speed – up to 38,000 rpm – provides the required performance.
Maintenance-free ball bearing, vibration-damping materials and excellent aerodynamics ensure quiet operation for many years.
The product is manufactured in 2 models:
- RVE45-3/54/2P – 24 Vdc supply, 513 l/min air flow
- RVE45-3/52/2P – 12 Vdc supply, 450 l/min air flow
Motor, connection, and construction
Unlike the RV45 series, the RVE45 series already has integrated control electronics. Speed is controlled by a PWM signal or analog voltage. There is also an output signal to inform you of the actual speed.
Motor
- very compact thanks to the new design
- special strong magnets used
- lightweight rotor for highly dynamic operation – it can accelerate up to 80 revolutions per millisecond
- blade geometry is optimized for aerodynamics, the rotor can withstand high pressures and up to 38,000 rpm
- it is quiet at a given performance – 58 dB (A)
- minimal vibrations – dynamic balancing of the impeller-motor unit
Connection
- very simple – 4 wires with free-end
Construction
- case optimized for noise reduction
- easy to fasten in the application with screws
5 key areas of suitable use of the RVE45 fan
“Due to its properties, this centrifugal fan is especially suitable for applications where a dynamic air supply at high static pressure is required. The extremely compact fan, about the size of a tennis ball, is therefore suitable for applications such as fuel cells, smoke detection systems, or packaging machines,” continues Pavol Buhla.

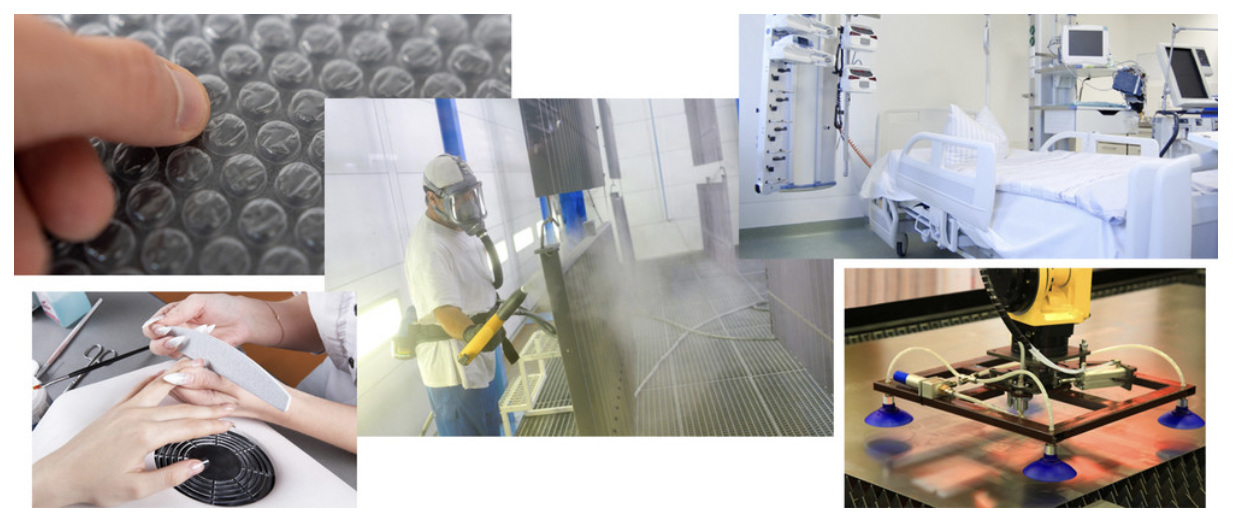

The 5 main areas that are mentioned below represent in what kind of applications you can already find the RVE45 fan:
- vacuum lifters
- breathing masks (eg in a paint shop), which can also be powered by a battery
- hospital beds with anti-decubitus mattress
- dust extractor in nail studio
- production of bubble wrap
“It is already clear at first glance that dynamics is needed in many of these applications.
However, the RVE45 centrifugal fan can change speeds from 0 to 38,000 rpm in less than 500 ms. And active braking means that the fan can achieve similar dynamics also when reducing speed,” concludes Pavol Buhla in a review of the new product from ebm-papst.
For further information on RVE45 series fans or other ebm-papst products, contact the SOS electronic sales representative in your region or send an email to [email protected]
