RECOM’s 3 W AC/DC module’s 1″ x 1″ size is well-suited for space conscious low-power IoT applications

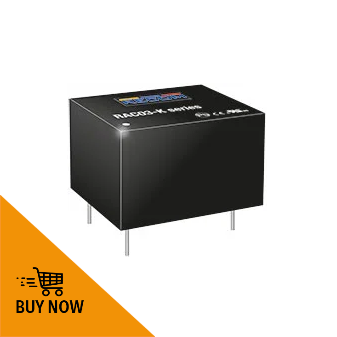

Specifically developed for low power interconnected applications with a minimal footprint, no-load power consumption, and optimized standby mode, RECOM’s RAC03-K series is the only complete 3 W AC/DC converter on the market with a 1″ x 1″ footprint. It has the standard 85 VAC to 264 VAC universal input voltage range, an operating temperature range of -40°C up to +60°C (up to +80°C with 2 W usage), is EMC compliant including class B emissions, and is internationally certified.
Features
- 1″ x 1″ footprint
- Optimized standby mode (meets Ecodesign Lot 6 standards)
- No-load power consumption <150 mW
- Class B EMC compliance without external exponents
- Reinforced class II installation rating
- Internationally certified
Applications
- IoT
- IIoT
- Industrial
- Household
