Step into a new era of connectivity with Quectel’s FGH100M Wi-Fi HaLow module. With an impressive 1 km range, low energy consumption, and enhanced obstacle-penetration capabilities, it’s not just a module; it’s a game-changer. Dive into the details and be among the first to embrace the future of wireless technology.
PAVEL KOVÁČ SOS electronic Product Specialist More articles from the author
Quectel Wireless Solutions recently launched the new communication module, Wi-Fi HaLow FGH100M, which offers a more robust connection in challenging conditions and over long distances while maintaining low energy consumption. This Wi-Fi module is ideal for a wide range of Internet of Things applications, including battery-powered devices that can operate for months or even years.

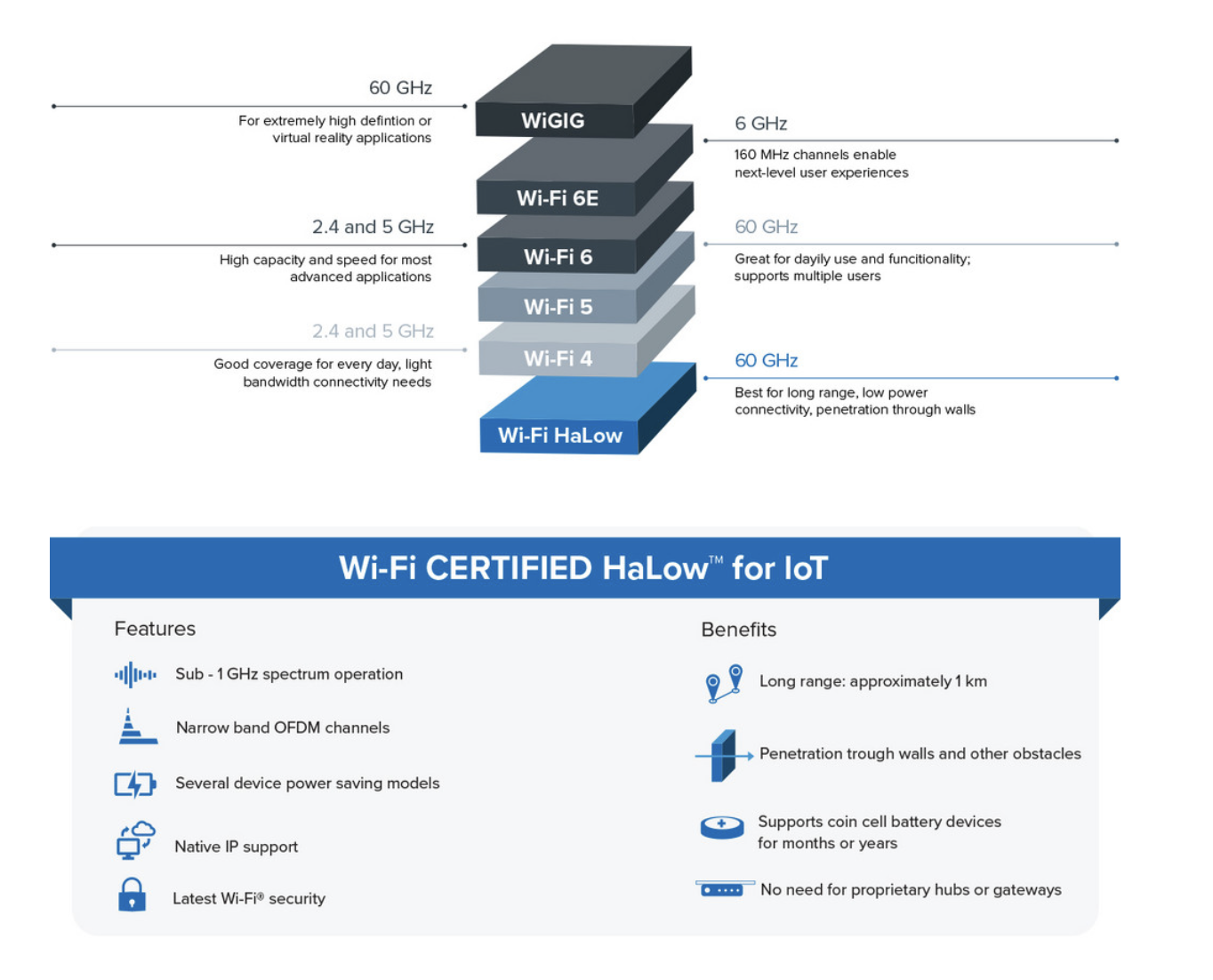

What does Wi-Fi HaLow mean?
Wi-Fi CERTIFIED HaLow™ is the designation for certified products incorporating IEEE 802.11ah technology, expanding Wi-Fi by operating in the frequency band below 1 GHz to achieve longer range and lower power consumption.
This Wi-Fi technology meets unique requirements for the Internet of Things (IoT) and further extends its application possibilities in industrial, agricultural, smart building, and smart city environments. It enables low-power connectivity, essential for applications such as sensor networks and wearable devices.
Wi-Fi HaLow offers longer range compared to many other IoT technology options and provides a more robust connection in challenging environments, where the ability to penetrate walls and barriers is a critical factor.

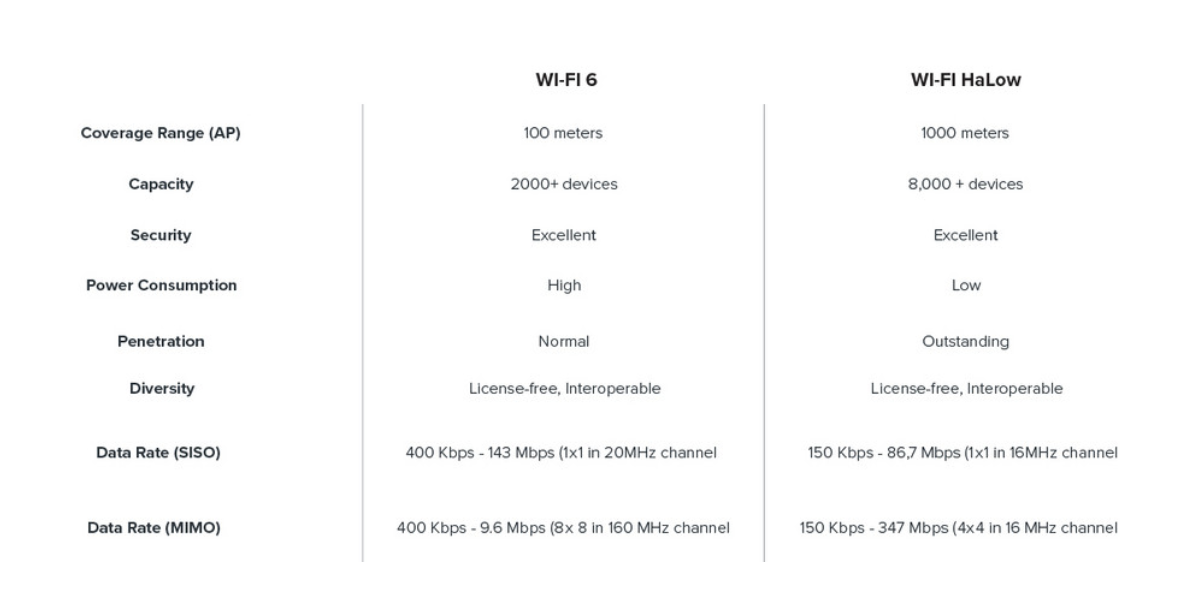

Comparison of Wi-Fi 6 and Wi-Fi HaLow technologies:
Communication module Quectel Wi-Fi HaLow FGH100M
The President and CSO of Quectel Wireless Solutions, Norbert Muhrer, said when introducing this module to the market:
“By integrating the game-changing Wi-Fi HaLow technology, our FGH100M module will deliver long-range and robust Wi-Fi connectivity without sacrificing simplicity and efficiency. It is a very powerful complement to our already extensive range of Wi-Fi modules delivering functionality across Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, and Wi-Fi 6E.”
The Quectel FGH100M Wi-Fi HaLow module with long-range and low power consumption complies with the IEEE 802.11ah standard. It operates in the 850 – 950 MHz bands with channel widths of 1/2/4/8 MHz and offers a maximum output power of 21 dBm and a theoretical maximum data rate of 32.5 Mbps. Thanks to these parameters, users can control their IoT devices within a range of up to 1 km.
Key features of the Wi-Fi module Quectel FGH100M:
- Wi-Fi HaLow module operates at a frequency of 850 – 950 MHz
- AES, SHA-256, SHA-384, SHA-512, WPA3.
- SDIO 2.0 interface, long-distance transmission, and lower power consumption.
- Quick time-to-market due to its straightforward design.
- Wide operating temperature range: –30°C to +85°C.
The use of SMD technology enhances the module’s durability and robustness, while the LGA case allows for easy integration into applications with limited space, providing reliable connectivity. With its ultra-compact size of 13.0 mm × 13.0 mm × 2.2 mm, it optimizes and efficiently reduces the size of the end product, as well as design costs, making it a perfect fit for size-sensitive applications.
SOS electronic has included the Quectel FGH100M Wi-Fi module in a range of communication modules as a stock type, so it will be immediately available for your IoT projects.
