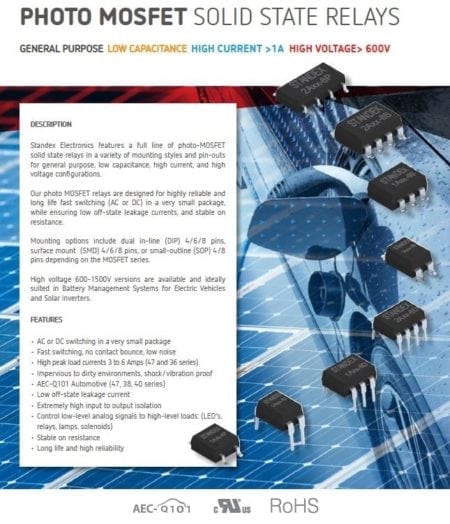

PHOTO MOSFET SOLID STATE RELAYS


Standex Electronics features a full line of photo-MOSFET solid state relays in a variety of mounting styles and pin-outs for general purpose, low capacitance, high current, and high voltage configurations.

Our photo MOSFET relays are designed for highly reliable and long life fast switching (AC or DC) in a very small package, while ensuring low off-state leakage currents, and stable on resistance.

Mounting options include dual in-line (DIP) 4/6/8 pins, surface mount (SMD) 4/6/8 pins, or small-outline (SOP) 4/8 pins depending on the MOSFET series.

High voltage 600-1500V versions are available and ideally suited in Battery Management Systems for Electric Vehicles and Solar Inverters.

FEATURES
• AC or DC switching in a very small package
• Fast switching, no contact bounce, low noise
• High peak load currents 3 to 6 Amps (47 and 36 series)
• Impervious to dirty environments, shock/vibration proof
• AEC-Q101 Automotive (47, 38, 40 series)
• Low off-state leakage current
• Extremely high input to output isolation
• Control low-level analog signals to high-level loads: (LED’s, relays, lamps, solenoids)
• Stable on resistance
• Long life and high reliability
