The PAN1326C2 is a Bluetooth Low Energy 4.2 dual mode solution supporting Basic Rate (BR) and Enhanced Data Rate (EDR), fully certified for EU, US and CA.

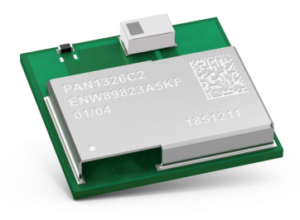

Panasonic’s PAN1326C2 is a Host Controlled Interface (HCI) Bluetooth Radio Frequency (RF) module which has integrated Texas Instruments C2564C. That brings Texas Instruments Incorporated™ seventh generation Bluetooth core integrated circuit to an easy-to-use module format. The PAN1326C2 is Bluetooth 4.2 compliant and it offers best-in-class RF performance with about twice the range of other Bluetooth Low Energy solutions. Panasonic’s tiny footprint technology has produced a module with a dimension of only 9.0mm x 9.5mm x 1.8mm. The module is designed to accommodate PCBs pad pitch of 1.3mm and as few as two layers for easy implementation and manufacturing. The module has been designed to be 100% pin-compatible with previous generations of Texas Instruments based Bluetooth HCI modules. CE, RED, FCC, IC certifications are available.
General Features And Benefits:
• Bluetooth v4.2 compliant up to the HCI layer
• Best-in-class Bluetooth RF performance (Tx, Rx sensitivity, blocking)
• Fully-qualified Bluetooth
• Dimensions: 9.0mm x 9.5mm x 1.8mm
• Based upon TI’s CC2564C
• Interfaces: UART, GPIO, PCM
