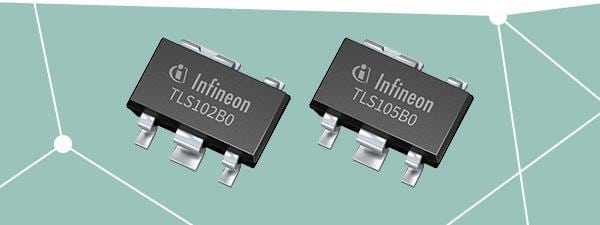

The TLS10xB0 is a monolithic integrated low-dropout voltage tracking regulator. It provides an output voltage with 0.1% accuracy to respect of the ref voltage in a small SCT595-5 package.
The TLS105M0BM is able to drive loads up to 50 mA and TLS102M0BM is able to drive loads up to 20 mA.
Features
Best in class dynamic response to load and line transients
Short circuit protected output (to GND and to battery)
Reverse polarity protected input
Over temperature protection
Output current limitation
Benefits
Full protection for ECU and sensors when placed off board
Easy and accurate voltage replication
High flexibility/scalability
Lower design effort – design cost saving
Pin to pin compatible to TLE4250-2G
Applications

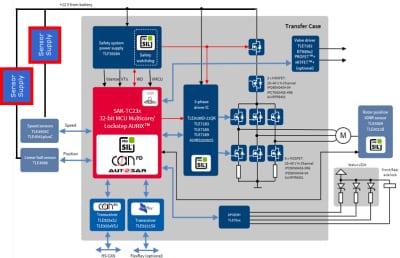

Protected off board sensor supply in HVAC, EMS, TCU, EPS, Braking, Transmission, Transfer case
Heat/Voltage distribution
µC controller supply
