Infineon combines the industry leading performance of the TRENCHSTOP™ family with the innovative reverse conducting RC-H IGBT technology to create a new generation of best-in-class devices.
The 20 A RC-H5 1200 V and 1350 V devices complement the previous generation of reverse conduction IGBTs and extend the performance leadership of the RC-H family, offering best-in class efficiency with lower switching and conduction losses for soft switching applications.
Switching losses reduced by 20%
Very low conduction losses
Reduced turn-on current spike up to 10%
Tj(max) = 175°C
Soft current turn-off waveforms for low EMI
Higher blocking voltage VBR(min) = 1350 V
TO-247 – 3pin package
Best performance in systems with increased switching frequency to 30 KHz
Lowest power dissipation to meet efficiency label requirements
Better thermal management for higher reliability
Low EMI filtering requirements
High reliability against peak currents

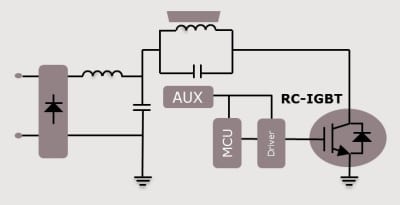

Induction heating (Rice cooker, induction cooker and MWO using SE topology)
Power inverter
Induction heaters
