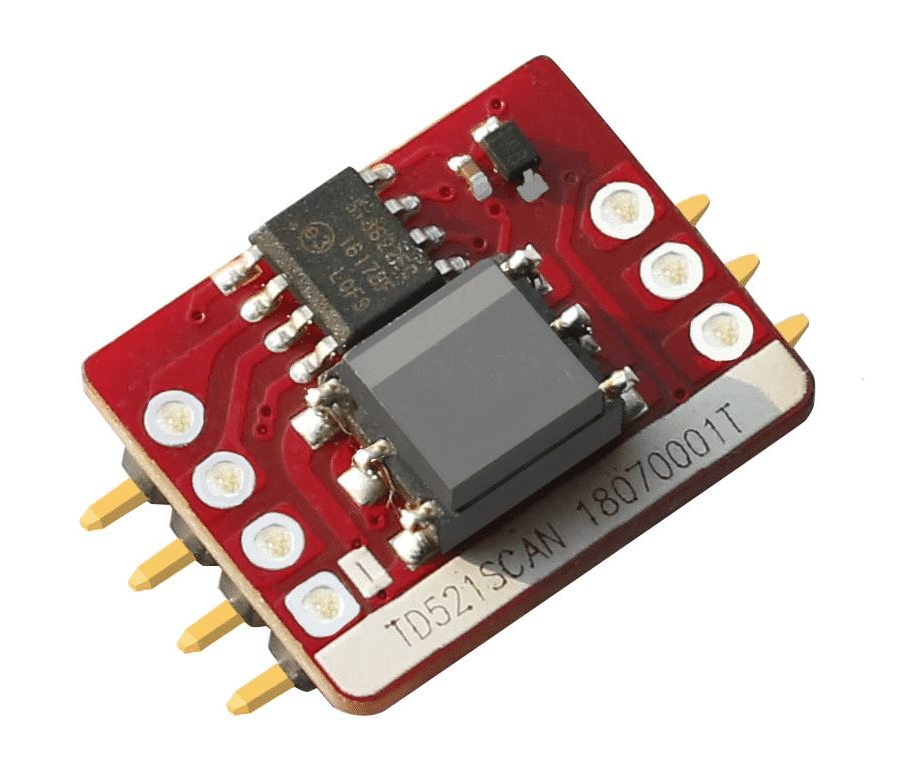

MORNSUN recently introduced the new cost-effective transceivers in SMD package, TSx21SCAN(H) (SMD 8) and TDx21S485x series (SMD 10), to assist fast signal response in industries of power grid, industrial control, transportation (rail, automotive) and instrumentation, etc., 6 months after the launch of Open Frame CAN Transceivers TDx21DCANx Series in DIP package.
The series are designed with a more compact size and automation manufacturing process ensures
products’ consistency and reliability. Secondly, they use pin terminals to match corresponding female header, which enables customers to easily achieve automated processing, and greatly reduce costs.
Features:
- Compact size, SMD package
- Integrated power supply, bus isolation and ESD protection in one module
- Isolation: Two- port isolation 3000 VDC (input and output are mutually isolated)
- Baud rate up to 1Mbps (CAN) / 500kbps (RS485)
- Connect up to 110 (CAN) / 256 (RS485) nodes on one bus
- Operating temperature range: -40℃ to +105℃(CAN)/-40℃ to +85℃(RS485)
- Meet EN60950 standards
