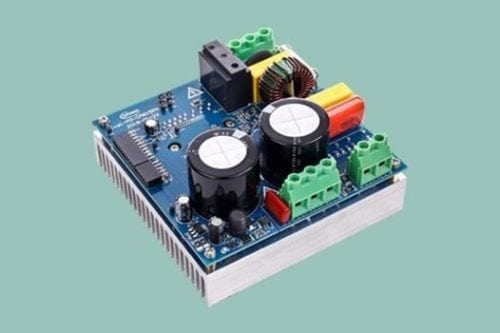

Evaluation board for supporting customers during their first steps of designing applications with CIPOS™ Mini PFC integrated IPM. The combination of this power board and matching iMOTION™ control board EVAL-M3-102T, based on the IMC102T-F064 iMOTION™ controller, creates a powerful inverter + PFC system for evaluating the latest Infineon technologies.
The Eval-M3-CM615PN features the IFCM15P60GD, one of the CIPOS™ Mini product family, which combines a 3-phase inverter stage with a PFC stage based on TRENCHSTOP™ IGBTs.
It enables rapid prototyping of various inverterized motor control systems, for example fans, pumps and compressors, in combination with active PFC.
Summary of Features:
Power stage to drive 3-phase motor
Power Factor Correction (CCM boost PFC topology)
600 V blocking voltage15 A installed chip current
Maximum PFC switching frequency 40 kHz
650 W output power with passive cooling
Test pads with hooks to attach standard oscilloscope probes
Standard MADK M3 interface connector
Benefits:
Evaluate IFCM15P60GD module for your application
Get your motor running within one hour in combination with Eval-M3-102T
Learn more about motor control in low voltage domain
