P-Duke have announced their family of the RCD series of EN50155 and 62368 approved DC/DC converters has been widened with the addition of the 10W and 15W series.
These offer a wide 4:1 ratio input voltage range, of 9-36V, 18-75V and 36-110V, with single output voltages ranging from 3.3V to 24V and dual output versions of +/-5V, +/-12V, +/-15V and +/-24V.

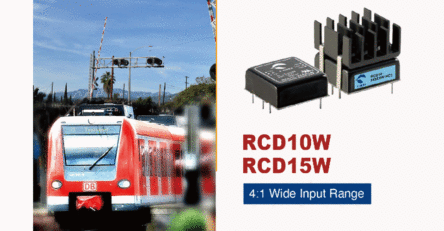

They have built in class A EMI filters, offer 3KVDC isolation, with a selection of protection features all in a compact 1” x 1” package. Currently the 15W versions also can be fitted with a heatsink at the factory. If required there is an optional M3 version that can cope with extra harsh environmental conditions of -55 degrees operating temperature.
The RCD10W and RCD15W are now available for sampling and mass production.
Features
- Efficiency up to 91%
- Industry Standard 1”x1” Package
- 4:1 Wide Input Range
- Operating Temperature: -55℃~105℃ (M3 Version)
- OCP, SCP, OVP, OTP and Built-in EMI Filter
- 9-36, 18-75, 36-160VDC Input Range
- 3000VDC Isolation Voltage
These families add to the wide offering from P-DUKE of their range of 3-300W rail approved DC to DC converters, all featuring high efficiencies, high operating temperature with built in EMI class A/B filters and high reliability.
Our factory trained engineering support team are ready to assist with product selection and technical support on this range and our other rail application specific products, please call for further information. Datasheets are available to download from the Luso website
