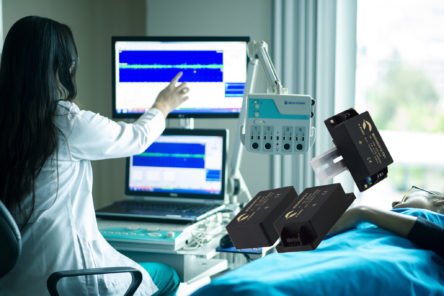

P-Duke have released the MSD series of medical grade AC/DC units. There are 3 families available, 30W, 40W and 65W, all are in 3 different easy to implement formats. These being through hole board mount, chassis mount with screw terminals and Din Rail.
These IEC 60601-1 Safety Approved units are complete solutions in fully encapsulated compact sized modules measuring 3.2″ x 2.2″ and just 1.2″ high.
They are ideal for many medical applications especially designed for lower power requirements and portable applications.
With a universal input range of 85 to 264V AC, these units are single output units with voltages ranging from 5V to 53V, they also offer great efficiencies of up to 93%.
Samples are available for evaluation on short leadtimes, contact our power specialists for more information.
Features
- Encapsulated AC/DC Power Supplies
- Medical Grade
- 85-264VAC Input Range
- 0.15W Input Power at No Load
- Efficiency Up to 93.5%
- 4000VAC Isolation Voltage
- 75μA Leakage Current
- 5000m Operating Altitude
- IEC 62368-1, IEC 60601-1 Safety Approved
- Dimensions: 3.20” x 2.20” x 1.20” (L x W x H)
