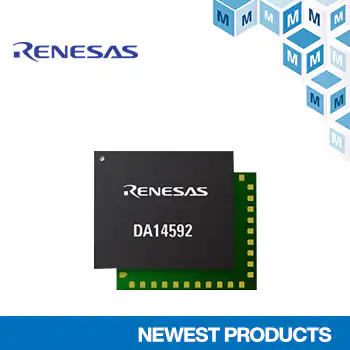

Mouser is now stocking the DA14592 Bluetooth® Low-Energy (BLE) 5.2 system-on-chip (SoC) with embedded flash from Renesas Electronics. This robust BLE-enabled SoC is designed for asset and activity tracking, human interface devices, data logging, high-end voice remote control units (RCU), and crowd-sourced locations for both Google and Apple.
This SoC features multi-core processing with Arm® Cortex®-M33 and Arm Cortex-M0+ at 64 MHz for both application and configurable media access control (MAC) in a low-power (<3.5mA), small footprint solution. The multi-core DA14592 SoC combines 15-bit, 8-channel, sigma-delta analogue to digital converters (ADC), multiple general-purpose inputs and outputs (GPIOs), and optimised integration between on-chip memory (RAM/ROM/Flash) and SoC die size, for cost-effective performance across a broad range of applications. The DA14592 maintains Renesas’ leadership in low radio power consumption by leveraging its new low-power mode, enabling a radio transmit current of only 2.3 mA at 0 dBm and a radio receive current of 1.2 mA. The DA14592 typically requires only six external components, delivering best-in-class eBOM and offering the lowest solution cost and size. Its high accuracy on-chip RCX removes the need for an external, sleep mode crystal, with most applications only requiring a 32 MHz crystal. This SoC is supported by DA14592 development tools.
