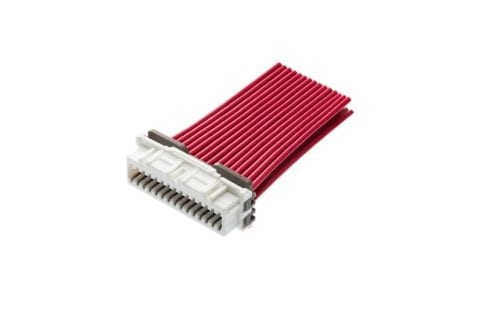

Molex Spot-On 1.5mm and 2.0mm Connector System is one of the first SMT type potting Wire-to-Board connector systems on the market. The improved process capabilities and mechancial reliability provide protection against water ingress in White Goods applications requiring potting treatment. Molex Spot-On 1.5mm and 2.0mm Connectors’ durable design features numerous advantages, including fully polarized and color-coded receptacle housing that ensures fool-proof mating of the wired assembly, decreasing the possibility of mismatching wires.
Features
- Retainer – provides secure insertion of crimped terminal
- Positive Inner Lock – offers secure mating retention and prevents wire tangling and latcch breakage
- Fully polarized and color-coded receptacle housing – ensures fool-proof mating of the wired assembley
- Robust center nail – reduces stress on SMT solder joints to prevent solder cracking
- Higher profile plug housing – ensures protection from potting material ingress into housing. Maximum potting height is 5.0mm
- SMT mounting tails – automated assembly reduces manual labor processes
Applications
- Air conditioner
- Refrigerator
- Microwave oven
- Washing machine
- Water heater
- Shower toilet
- Washer/Dryer
- Stove
