nanoPower Boost Converter that Extends Battery Life and Reduces Solution Size

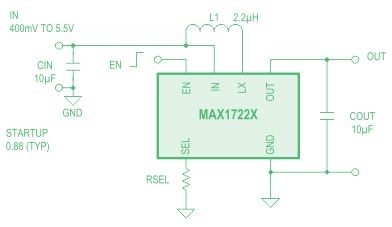

The MAX17220-MAX17225 is a family of ultra-low quiescent current boost (step-up) DC-DC converters with a 225mA/0.5A/1A peak inductor current limit and True Shutdown™. True Shutdown disconnects the output from the input with no forward or reverse current. The output voltage is selectable using a single standard 1% resistor. The 225mA (MAX17220), 500mA (MAX17221/MAX17222/MAX17223), and 1A (MAX17224/MAX17225) peak inductor current limits allow flexibility when choosing inductors. The MAX17220/MAX17222/MAX17224 versions have post-startup enable transient protection (ETP), allowing the output to remain regulated for input voltages down to 400mV, depending on load current. The MAX17220-MAX17225 offer ultra-low quiescent current, small total solution size, and high efficiency throughout the entire load range. The MAX17220-MAX17225 are ideal for battery applications where long battery life is a must.
Key Features
- 300nA Quiescent Supply Current Into OUT
- True Shutdown Mode
- 95% Peak Efficiency
- 400mV to 5.5V Input Range
- 0.88V Minimum Startup Voltage
- 1.8V to 5V Output Voltage Range
- 225mA, 500mA, and 1A Peak Inductor Current Limit
- MAX17220/MAX17222/MAX17224 Enable Transient Protection (ETP)
- 2 x 2mm 6-Pin µDFN
- 0.88 x 1.4mm 6-Bump WLP (2 x 3, 0.4mm Pitch)
