LoRa® is a long range wireless area network allowing low-power sensors to report over ranges of up to a dozen kilometers.

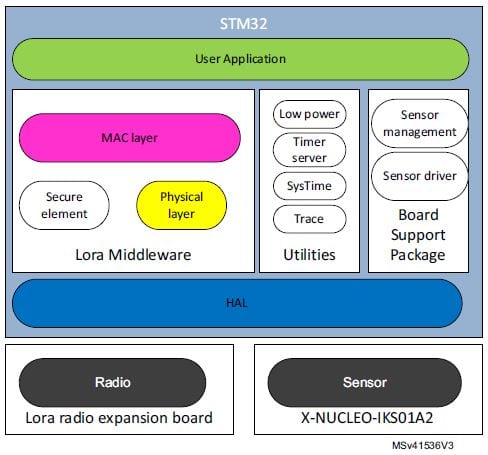

The I-CUBE-LRWAN Expansion Package consists of a set of libraries and application examples for STM32L0, STM32L1 and STM32L4 Series microcontrollers acting as end-devices.
This package supports the SX1276MB1MAS, SX1276MB1LAS, SX1272MB2DAS, and the new radio generation sx126x mounted on SX1262DVK1DAS, SX1262DVK1CAS and SX1262DVK1BAS LoRa® radio expansion boards, provided by SEMTECH.
This package includes an application running on NUCLEO-L053R8, NUCLEO-L152RE, NUCLEO-L476RG and B-L072Z-LRWAN1 Discovery kits embedding the CMWX1ZZABZ-091 LoRa® module from Murata. It also supports a USI® LoRaWAN™ technology module through the I-NUCLEO-LRWAN1 expansion board and the RiSiNGHF® modem RHF0M003 mounted on LRWAN-NS1 expansion board available in P-NUCLEO-LRWAN3 (coming soon). The application reads sensor data from the X-NUCLEO-IKS01A2 expansion board and sends the sensor data to the LoRa® network in class A. For further details about the components of the LoRa® middleware library, refer to the STM32 LoRa® software expansion for STM32Cube User manual (UM2073).
Key Features
Compliant with the LoRa Alliance™ specification protocol, named LoRaWAN™ version V1.0.3 March 2018
Bidirectional end-devices with class A, class B and class C protocol support
EU 868 MHz ISM band ETSI (European telecommunications standards institute) compliant
EU 433 MHz ISM band ETSI compliant
US 915 MHz ISM band FCC (federal communications commission) compliant
End-device activation either through OTAA (over-the-air activation) or ABP (activation-by-personalization)
Adaptive data rate support
LoRaWAN™ test application for certification tests included
Low-power optimized
Full STM32 portfolio compatibility
Compliant with the CMWX1ZZABZ-091 LoRa® module from Murata
Compliant with the WM-SG-SM-42 LoRa®module from USI
Compliant with the RHF0M003 modem from RiSiNGHF®
Easy secure element integration
