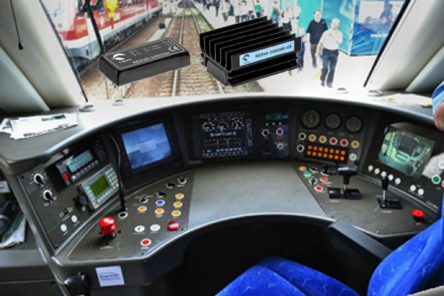

P-Duke increase their range of EN50155 approved railway dc/dc converters with the RED40, 40W series
This series is supplied in a compact industry standard 2” x 1” package with a 4:1 wide input range and is typically suitable for many on board applications.
There are a variety of single output versions, from 3.3V to 53v and dual output versions offering +/-12V, +/-15V, +/-24V. The output can be adjusted up to 10%, this is accomplished by connecting an external resistor between the trim pin and either the +Vout or -Vout pins, the data sheet details of the resistor required.
The RED40 series offer efficiencies up to 93% and feature complete protection functions, such as overcurrent protection, short-circuit protection, output overvoltage protection, overtemperature protection, etc.
They add to the wide offering from P-DUKE of their range of 3-300W rail approved DC to DC converters, all featuring high efficiencies, high operating temperature with built in EMI class A/B filters and high reliability.
Features
■ No Minimum Load Required
■ 4:1 Wide Input Range: 9-36, 18-75, 36-160 VDC
■ 3000VDC Input to Output Isolation For 110vin
■ Industry-standard Package 2.00 X 1.00 X 0.40 Inch
■ Six-Sided Continuous Shield
■ UL62368-1, EN62368-1, & IEC62368-1 Safety Approvals
■ Compliant with EN50155 And EN45545-2 Railway Standard
