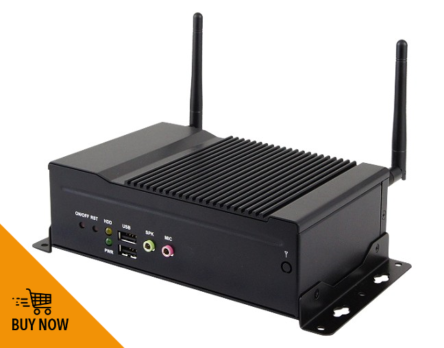

IBASE Technology, a manufacturer of application specific industrial embedded computing platforms, announced the release of its CSB200-818, a slim fanless system with a wide-range operating temperature that is fully operable under harsh conditions. Suitable for 24/7 deployments such as industrial automation and intelligent transportation applications, this compact system comes with a 12V-24V DC terminal block power input and an optional 60W power adaptor.
The robust embedded CSB200-818 houses a 3.5-inch single board computer powered by an Intel® Atom™ processor E3930, N4200 or N3350 and is equipped with 4GB (default) of DDR3L-1866 system memory that is upgradeable to 8GB. It offers versatile wired and wireless connectivity with the two onboard RJ45 Gigabit Ethernet ports and dual mini PCIe slots for optional WiFi, Bluetooth and LTE interface cards.
“IBASE has designed the CSB200-818 for customers requiring system reliability, efficient power consumption, longevity and low total cost of ownership. It has a rich set of interface connectivity options and a heat-dissipating enclosure with a flexible storage design for easy installation and maintenance,” said Wilson Lin, Director of IBASE Product Planning Department. Onboard rear I/O interface includes four high-speed USB 3.0, HDMI, four COM ports and two RJ45 connectors. Other features provided are wall-mount mounting and two wireless antennas.
To support an operating temperature range of -30°C to +65°C, the CSB200-818 is configured with an Intel® Atom™ processor E3930 and 64GB industrial-grade SSD. With an N-Series (N4200/N3350) CPU and 500GB of SATA HDD, it operates between -10°C to +45°C. Both temperature conditions require sufficient airflow.
