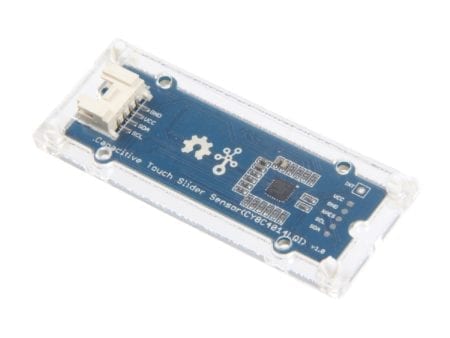

The Grove – Capacitive Touch Slide Sensor(CY8C4014LQI) is a multifunctional touch sensor. You can touch the two buttons or slide on the 5-segment slider, each touch pad has a corresponding LED to indicate the touch status. Also we provide a default high interrupt pin, once you touch the button or slide the slider, it will comes to low.
It will be a lot fun to use this module as a game controler or apply it to other touch applications.
Features
32-bit MCU Subsystem
16-MHz ARM Cortex-M0 CPU
Up to 16KB of flash with Read Accelerator
Up to 2KB of SRAM
Automatic hardware tuning (SmartSense™) over a sensor range of 5 pF to 45 pF
I2C interface
Typical Appilcations
Game controller
Touch applications
