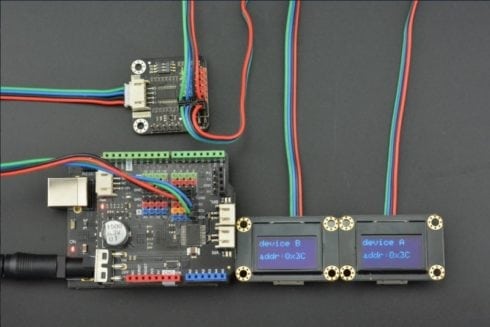

On the same I2C port, DFRobot Gravity: I2C Multiplexer solves the address conflict and enables the normal communication with multiple same-address I2C devices.
You just found the sensor you needed, and you want to wire up two or more to the I2C port of your main board, but later you realized that they have the fixed I2C address! That is, you can not directly use them on the same I2C port! Are you out of luck? Now don’t worry! DFRobot Gravity: I2C Multiplexer can easily solve the address conflict on the same I2C port.
This I2C multiplexer is easy to use, plug and plug and no need to weld. 1 multiplexer has 8 I2C ports, this means you can hook up 8 same-address devices at the same I2C port by 1 multiplexer . The default I2C address of the multiplexer is 0x70, and you can adjust from 0x70 to 0x77. In theory, you could hook up 8 multiplexers on address 0x70~0x77 , to control 64 same-address devices. So powerful!
FEATURES
3.3~5.0V wide operating voltage
3.3V I2C digital level, optimized for 3.3V main control board such as Raspberry Pi, and also compatible with 5V main control board such as Arduino UNO
Gravity I2C Connector, plug and play, no welding
On-board I2C address dial switch, the I2C address can be set
Support the cascade of 8 multiplexer on address 0x70~0x77
4pin color-coded headers, simple and clear
SPECIFICATION
Operating Voltage: 3.3~5.0V
Connector Type: PH2.0-4P
Interface Level: high 3.3V, low 0V
Interface Protocol: I2C(IIC)
I2C Clock Rate: 100K, 400K
I2C Port Quantity: 8
Default I2C Address: 0x70 (dial switches all to 0)
I2C Address Range: 0x70~0x77
Dimension: 32*32mm / 1.26*1.26in
SHIPPING LIST
Gravity: Digital 1-to-8 I2C Multiplexer x1
Gravity 4pin UART/I2C Cable x1
XH2.54-5pin Header x1
