INTRODUCTION

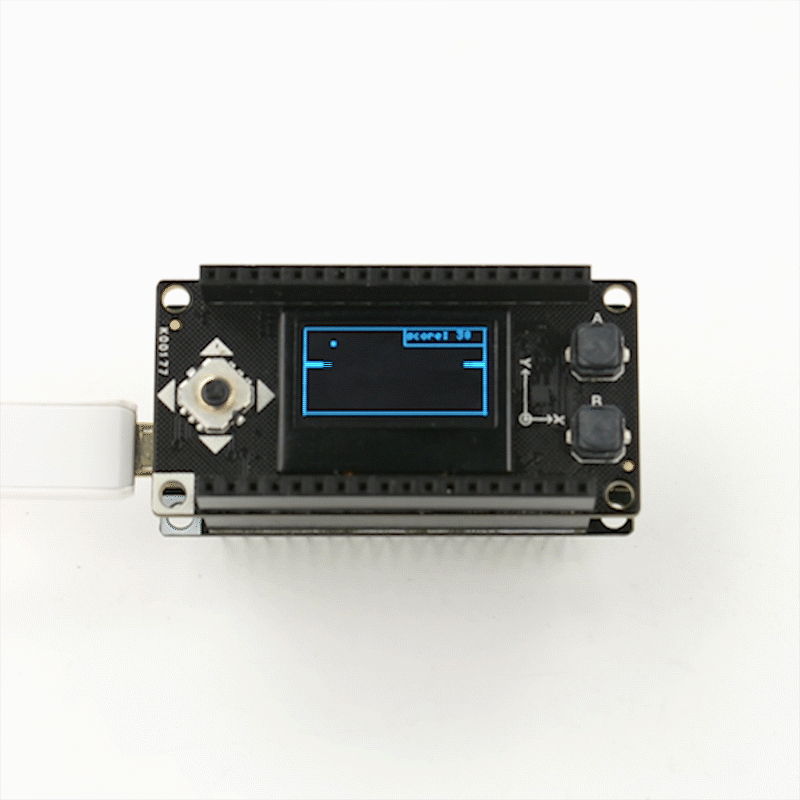

DFRobot FireBeetle series is low-power development board designed for the IoT projects. This FireBeetle covers display module is equipped with 128×64 resolution OLED and new version of SSD1360 driver IC, uses I2C interface, supports for the Arduino library and microPython coding program, fully compatible with the Gravity I2C OLED-2864 screen.
OLED screen has a protective frame to protect the screen, it prevents the finger from being scratched on the edge of the glass. The OLED 12864 display module also integrates the GT30L24A3W multi-language font library chip and the BMA220 three-axis accelerometer. In addition, the FireBeetle Covers-OLED12864 display features an analog directional key and two independent digital keys A and B.
FEATURES
- Support Multi-language Font
- Built-in 3-axis acceleration sensor
SPECIFICATION
- Voltage Range: 3.7V-5.5V
- 2 User Buttons: Using digital port D4, D8 detection mode
- 5-way Switch: Using analog port A0 detection mode
Three- axis Accelerometer BMA220: IIC
- Data Bus: IIC
- Dimension: 0.079×0.079×0.035in/2x2x0.9mm
- Resolution: 6 bit
- Range: 2/4/8/16g
- Power Consumption: 250uA
OLED
- Model: UG-2864HLBEG01
- Dimension: 0.96in
- Color: blue
- Data Bus: IIC
- Pixel:128×64
Font Chip: GT30L24A3W
Data Bus: SPI
Character Set:
- GB18030 Simplified Chinese/Traditional Chinese
- KSC5601 Korean
- JIS0208 Japanese
- 180 Foreign Font
- Support for Multinational Unicode
- IS08859 and CODE PAGE
- Chinese Character Size:12 dot matrix, 16dot matrix, 24dot matrix
- Foreign Character Size:16 dot matrix, 24 dot matrix
- Working Current: 12mA
DOCUMENTS
SHIPPING LIST
- Firebeetle Covers-OLED12864 Display x1
- 18pin-2.54mm Pin Header ×2
- 18pin-2.54mm Long Pin Header ×2
