Extremely low capacitance: The bidirectional TVS diodes from Diodes at Rutronik

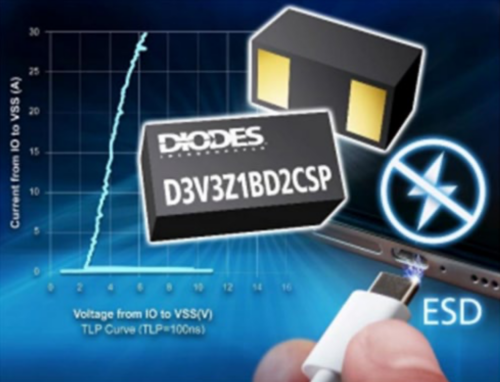

With the TVS diodes D3V3Z1BD2CSP from Diodes, Rutronik offers an ESD protection component with an extremely low capacitance Cd of 0.3 pF. They have been specially developed to protect high-speed differential lines. Due to their high pulse peak current capability (10.5 A, tP = 8 / 20 μs), these components can also be used for protection against electrical overload (EOS). The DSN housing with 0.60 mm x 0.30 mm x 0.30 mm also enables flexible protection for a single cable in applications. Potential uses include automotive applications requiring specific change control; i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable and manufactured in IATF 16949 certified facilities. The TVS diodes from Diodes are available at www.rutronik24.com.

The TVS diodes feature an extremely low terminal voltage (5 V or 5.3 V) to protect sensitive inputs and outputs and a low reverse current of 50 nA max. at a VR of 3.3 V. They enable reliable, bidirectional ESD protection for a cable.

Further benefits:

  • Provides transient protection for the protected line according to IEC 61000-4-2 (ESD) air ± 20 kV, contact ± 20 V and IEC 61000-4-5 (overvoltage) 10.5 A (8 / 20 μs)
  • Completely lead-free and fully RoHS-compliant
  • Halogen and antimony-free

Application Examples:

  • USB3.0, USB3.1 and USB3.2 Gen 2 x 2
  • USB Type-C®
  • HDMITM1.4, HDMITM 2.0 and HDMITM 2.1
  • ThunderboltTM 2, ThunderboltTM 3
  • 10G Ethernet
  • WiFi-6 AnT
