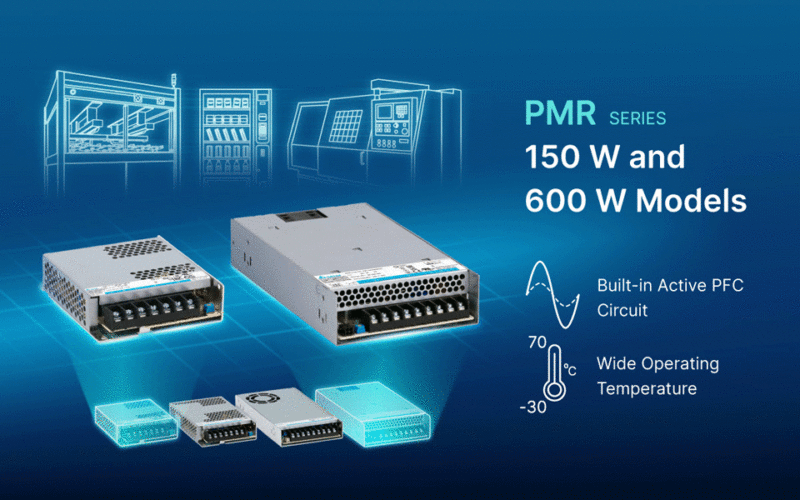

Delta Electronics have announced the addition of 150W and 600W models to its panel mount power supply PMR Series with maximum power outputs of up to 158.4 W and 600 W respectively. The two models offer nominal voltage options of 12 V, 24 V, 36 V, and 48 V. Featuring the 1U low-profile form factor, the two models are suitable for limited-space installations, such as factory automation, machinery, household appliances, vending machines, and test & measurement equipment.
Like the other models in the PMR series, these newly launched models feature built-in active power factor correction (PFC) to reduce electricity loss during the distribution process resulting in efficiencies of 91%. They also have a -30°C to +70°C wide operating temperature with -40°C cold start to ensure stable operation under rigorous environments. The two models also feature safety designs, including SCP (short circuit protection), OCP (over current protection), and OVP (over voltage protection).
The other models in the PMR series offer power ratings of 240W and 320W.
In addition, they conform to the IEC/EN/UL 62368-1, a standard for major international electrical safety among IT sectors, and audio/video equipment and household appliances safety standards IEC/EN 60335-1, IEC/EN 61558-1/-2-16. They also comply with harmonic current standards IEC/EN 61000-3-2 Class A and Class D, providing improved efficiency and reduced power consumption.
Features
- Universal AC input voltage
- Built-in active PFC circuit
- No load power consumption < 0.5 W (150 W) / 1.5 W (600 W)
- Built-in remote ON/OFF and remote sensor for 600 W models
- Low profile design for 1U installation
- IEC/EN 60335-1, IEC/EN 61558-1/-2-16 household appliance standards
- Wide operating temperature -30°C to 70°C (-40°C cold start)
