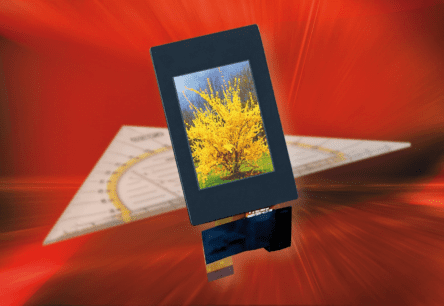

The chromatic IPS-TFT panel EA TFT020-23 with a screen diagonal of 2 inches provides an extremely fine resolution, wide viewing angles and excellent sunlight readability. Its versatile, standardized interfaces facilitate the further development of products using monochrome displays.
Electronic Assembly designed the 2-inch TFT020-23 as a full-color alternative to monochrome graphic displays, which are widely used in handheld devices. Despite its compact size of only 36 x 52 mm, it features a very fine resolution of 240 x 320 pixels. With a brightness of 1,000 cd/m² it delivers brilliant images in the office, production or operating room, even in bright sunlight. Thanks to the IPS technology, the crisp, sharp contrast is preserved over a wide viewing angle of 160° and the colours remain unchanged, even at the most oblique viewing angle.
One connector combines all control lines of the display, the backlight and even the optional touch panel with 39 pins at 0.5 mm pitch. The version with capacitive touch surface including I²C controller is called EA TFT020-23AITC. This version measures 43 x 65 mm, the touch panel (PCAP) is optically bonded for a clear and low-reflection display.
