IoT centralised systems and industry 4.0 technology, can benefit from the many types of interface modules and supports that CamdenBoss has to offer, with expert sales support and technical advice on the many various options we have, now is the right time to find out more about our pre-built DIN Rail systems.
A comprehensive selection of quality built, popular connectors and electronic components, present our customers with maintenance free, ready to use, plug-and-go systems. Capable of operating in a wide spread of applications such as networking, data transfer and circuit protection.
In addition, empty PCB supports provide you with freedom of design.
Interface modules:
Currently, there are twelve different module options, with some available as multiway variants. The pre-assembled modules feature rising clamp terminal blocks that provide a reliable connection method.
Relay modules are available in single or multiway options, up to 8 poles for multiple circuit requirements.

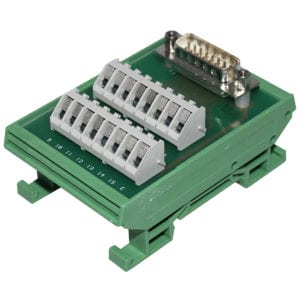

IDC ribbon cable connector and D connector modules, that are useful for a vast selection of uses, are also available in various options and types.
For data transferring applications, among many other typical uses, USB A and USB B modules are available. 45-degree screw type terminal blocks provide a wire to board connection method.

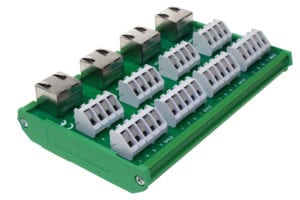

Networking and ethernet applications benefit from either single way, RJ45 types, also available in multiway choices of 4, 6- or 8-way modules. 45-degree terminal blocks are used here also as a wire to connector method. In addition, RJ45 to RJ45 couplers can be purchased.
Diode modules protect against return voltage and only allow electrical flow in one direction.
BNC jack to jack module are suitable for different applications depending on the option selected. 50ohm connectors are typically used in instrumentation and controls, whereas 75ohm modules are ideal for audio and visual applications, such as broadcasting.
Opto-isolators, reduce ‘noise’ and voltage shift, commonly used in panel LED indicator applications. Each module comes equipped with female to male pluggable terminal blocks.
Lastly, fuse modules provide a simple circuit protection method, from 2-8 fuse holders. Available with either screw type or pluggable terminal blocks.
DIN Rail PCB supports:
Available primarily in two different types and two sizes, empty modules provide a means to PCB’s that do not necessarily need a protective case and will operate on a DIN Rail system.

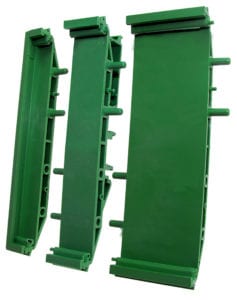

Modular types allow for pre-cut sections to be press-fitted together, producing a custom length. Available in the two industry standard PCB sizes of 107mm and 72mm, the CIME interface support covers US and European markets.

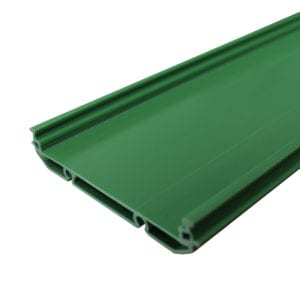

The extruded option provides a way for customers to choose a custom length to exactly fit their PCB, available in a length of up to two meters. Simply provide the length of your PCB and the rest is handled for you.
About CamdenBoss:
CamdenBoss continues to push the boundaries on providing customer driven solutions, utilising 50 years of manufacturing experience.
As the biggest innovator of high-quality plastic enclosures and electro-mechanical components in the UK, CamdenBoss has built an unbeatable and comprehensive of products, guaranteed to satisfy any requirement.
CamdenBoss consistently drive quality and innovation to enable the customer to stand out from the crowd. They remain the only company to provide multiple industrial products including terminal blocks, waterproof connectors, fuses and fuse holders, along with customised plastic and metal enclosures. Giving the customer engineered solutions and modern products all designed around today’s market
