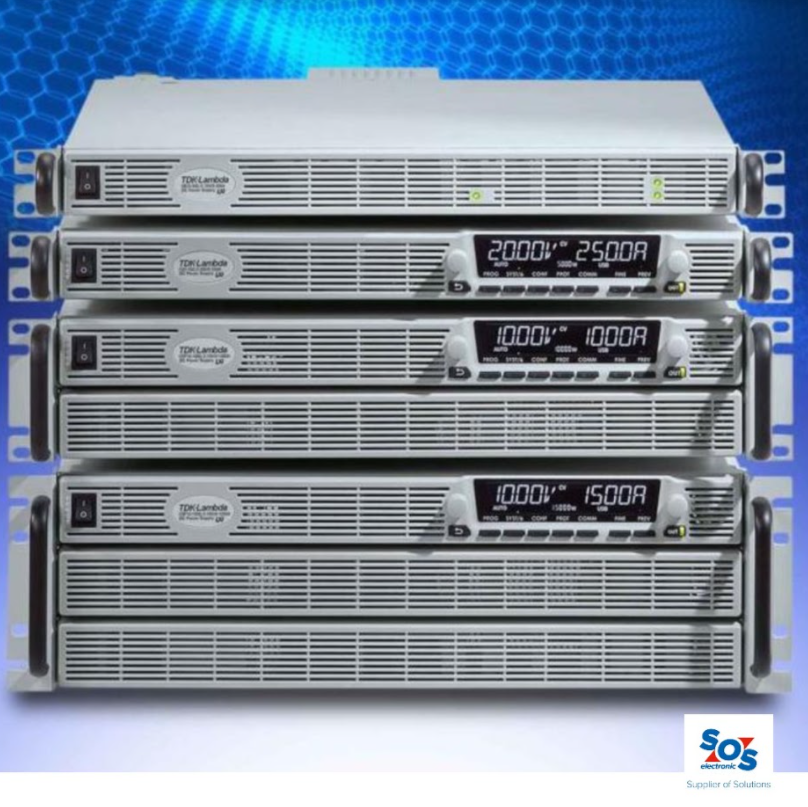

The Genesys+ series of programmable DC power supplies uses Digital Signal Processing (DSP) technology to improve performance, functionality and efficiency by up to 93%.
TDK Lambda programmable power supplies are used in applications such as components testing, aerospace and automotive testing, semiconductor fabrication, water treatment, plating and solar array simulation.
Main functions:
- Constant current, constant voltage or constant power modes
- Internal resistance simulation
- Accepts three-phase 170-265Vac, 342-460Vac or wide range 342-528Vac inputs with active Power Factor Correction
- 1U high, 19” (483mm) wide rack
- 20 voltage models available, from 0-10V/170A to 0-600V/0-8.5A
Improvements over standard Genesys range:
- Two user-programmable output control pins can activate external devices, such as load disconnect relays
- Arbitrary waveform profiles (e.g. car battery simulation at vehicle start) of up to 100 steps
- Advanced parallel master/slave system allows a multi PSU system to achieve dynamic response, ripple and noise performance comparable to a single power supply.
- Up to four units can be connected in parallel using a data link cable. The master and slave units automatically detect the parallel data connection and set their parameters accordingly
- Faster up and down programming response times speed up operation with user adjustable voltage and current slew rate control
Features:
- Highest power density available
- Available in 1U, 2U or 3U sizes
- Built-in LAN, USB, RS-232 & RS-485 interface
- Isolated analog program/monitor/control inputs
- Scalable power systems up to 20kW
- Worldwide safety agency approvals
- 5-year warranty
Application areas:
- Medical
- Industrial
- Military
- Test equipment
- Renewable energy
Find the programmable laboratory power supplies of the GENESYS+ series in our offer available upon order.
For more information about TDK Lambda products, do not hesitate to contact SOS electronic at [email protected]
